35Firing Practice and Exercise Areas

Explanatory Notes

1Firing and bombing practices, and defence exercises, take place in a number of areas off the coasts of Canada.
2The principal types of practices carried out are:

(a)Bombing practice from aircraft.
(b)Air to air, and air to sea or ground firing. The former is carried out by aircraft at a large white or red sleeve, a winged target, or flag towed by another aircraft moving on a steady course. The latter are carried out from aircraft at towed or stationary targets on sea or land, the firing taking place to seaward in the case of those on land. All marine craft operating as range safety craft, target towers or control launches for radio controlled targets will display, for identification purposes, while in or in the vicinity of the danger area, the following markings:

(i)A large red flag at the masthead;
(ii)A painted canvas strip, 1.8 m (6 ft.) by .9 m (3 ft.) with red and white chequers in .3 m (1 ft.) squares, on the fore deck or cabin roof.

(c)Anti-aircraft firing.

This may be from guns, missiles or machine guns at a target towed by aircraft as in (b) above, a pilotless target aircraft, or at balloons or kites. Practice may take place from shore batteries or ships. Warning signals as a rule are shown from shore batteries; ships fly a red flag.

(d)Firing from shore batteries or ships at sea at fixed or floating targets. Warning signals usually shown as in (c).
(e)Firing at remote-controlled craft.

These craft are approximately 20.7 m (68 ft.) in length and carry not under command shapes and lights, as well as normal navigation lights. Exercises consisting of surface firing by ships, practice bombing, air to sea firing and rocket firing will be carried out against these craft or targets towed by them. A control craft will keep visual and radar watch up to approximately 8 nautical miles and there will be cover from the air over a much greater range to ensure that other shipping will not be endangered.

3Warning signals, when given, usually consist of red flags by day and red fixed or red flashing lights at night. The absence of any such signal cannot, however, be accepted as evidence that a practice area does not exist. Warning signals are shown from shortly before practice commences until it ceases. Ships and aircraft carrying out night exercises may illuminate with bright red or orange flares.

4CAUTION. A vessel may be aware of the existence of a practice area from Local Notices to Mariners or similar method of promulgation and by observing the warning signals of the practice. The Range Authorities are responsible for ensuring that there should be no risk of damage from falling shell-splinters, bullets, etc., to any vessel which may be in a practice area.

Except where stated under Employment, areas are only in use intermittently or over limited periods, and when it is intended that a firing practice and exercise area be used, this information will be promulgated by local Canadian Coast Guard Marine Radio Broadcasts and may also be advertised in local newspapers. Maritime Command vessels are informed by Navigational Warning Messages CANHYDROLANT or CANHYDROPAC.

5 (a)The DND Sea area alphabetical identification designators in this Notice are used for marine purposes and are quoted in marine warning messages advertising the reservation of sea space for armed forces exercises. They are also shown in areas displayed on marine charts, however, not all areas are so displayed. Designators for marine areas on the West Coast are prefixed W; those for areas in the Great Lakes are prefixed L; those for the East Coast are not prefixed.

(b)Area descriptions

All bearings are true and those relating to arcs are from seaward. Miles are in nautical miles. Unless otherwise specified coordinates are based on North American Datum 1983 (NAD 83) which is equivalent to WGS 84.

(c)Employment abbreviations

The following abbreviations are used to indicate the employment of DND Exercise Areas:

A/A

Anti-Aircraft Firing

Missile

Surface to Air Missile Firing

S

Surface Firing

S.ht

Surface Firing High Trajectory

T

Torpedo Firing

NF

Non-Firing area for general purpose type exercise

A to A

Air to Air Firing

A to S

Air to Sea Firing

B

Bombing

R

Rocket Firing

A

Non-Firing area for general purpose type air exercises

A/S.he

Anti-Submarine Exercise including high explosive projectiles

A/S

Anti-Submarine Exercise excluding high explosive projectiles

SS

Subsurface Exercises

6The airspace identification numbers used in this Notice conform to the International Civil Aviation Organization (ICAO) Standards for airspace designations.

The identification system consists of a three-part code as follows:

(a)The assigned national identification letters - Canada is CY; and
(b)The letter R for a restricted area or the letter D for a danger area; and

(c)A three-digit number which will identify the airspace. This number will also indicate the region of Canada within which the area is located according to the following criteria:

101 to 199

British Columbia

201 to 299

Alberta

301 to 399

Saskatchewan

401 to 499

Manitoba

501 to 599

Ontario

601 to 699

Québec

701 to 799

New Brunswick; Nova Scotia; Prince Edward Island; Newfoundland

801 to 899

Yukon Territory

901 to 999

Northwest Territories; Arctic Islands

EXAMPLE: CYD401

CY

CY indicates Canada,

D

Indicates Danger Area,

401

Indicates the assigned number of the area in Manitoba

7WARNING

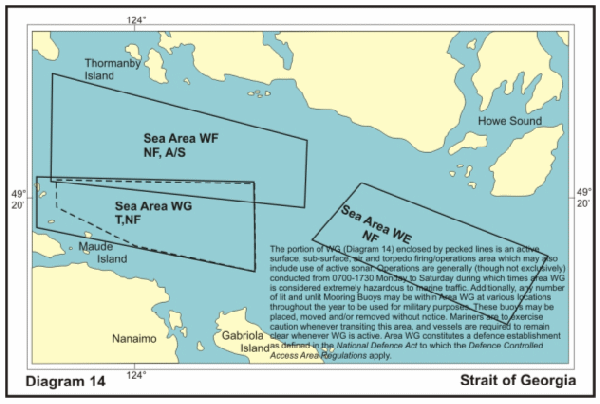

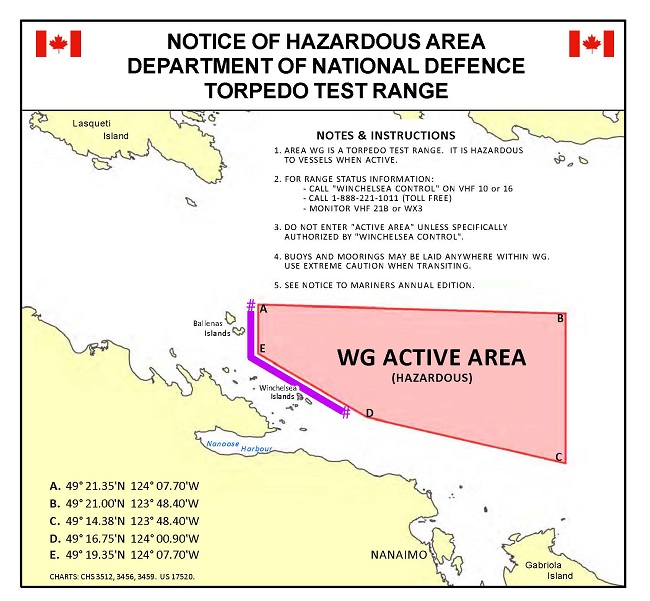

The portion of WG (Diagram 14) enclosed by pecked lines is an active surface, sub-surface, air and torpedo firing/operations area which may also include use of active sonar. Operations are generally (though not exclusively) conducted from 0700-1730 Monday to Saturday during which times area WG is considered extremely hazardous to marine traffic. Additionally, any number of lit and unlit Mooring Buoys may be within Area WG at various locations throughout the year to be used for military purposes. These buoys may be placed, moved and/or removed without notice. Mariners are to exercise caution whenever transiting this area, and vessels are required to remain clear whenever WG is active. Area WG constitutes a defence establishment as defined in the National Defence Act to which the Defence Controlled Access Area Regulations apply.

EAST COAST

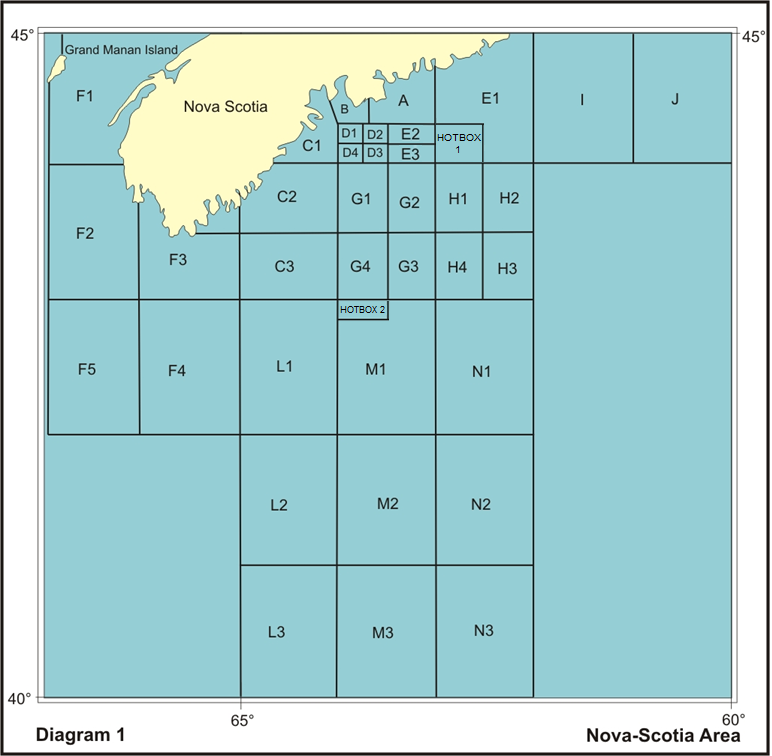

Nova Scotia Area

Sea Areas

Air Space

Location

Coordinates

Employment

Diagram

*ALPHA


Charts
4001, 4003, 4012, 4320 and 8007

44°42′N 63°00′W
44°19′N 63°00′W
44°19′N 63°40′W
44°28′N 63°40′W

Sub surface operations area.
* Does not include Halifax Hbr.
Extends to harbour limits only.

1

Chart
4013

44°42′N 63°00′W
44°19′N 63°00′W
44°19′N 63°40′W

BRAVO


Charts
4001, 4003, 4012 and 4320

44°28′N 63°40′W
44°19′N 63°40′W
44°19′N 64°00′W
44°28′N 64°05′W

Sub surface operations area.

1

CHARLIE
ONE


Charts
4001, 4003, and 4012

44°28′N 64°05′W
44°19′N 64°00′W
44°00′N 64°00′W
44°00′N 64°40′W

Sub surface operations area.

Chart
4320

44°28′N 64°05′W
44°19′N 64°00′W
44°00′N 64°00′W
44°00′N 64°25′W

CHARLIE
TWO


Charts
4001, 4003, and 4012

44°00′N 64°40′W
44°00′N 64°00′W
43°30′N 64°00′W
43°30′N 65°24′W

Sub surface operations area.

1

Chart
4320

44°00′N 64°00′W
44°00′N 64°25′W
43°55′N 64°00′W
43°55′N 64°25′W

Chart
8006

43°30.0′N 65°24.5′W
43°30.0′N 64°00.0′W
43°33.0′N 64°00.0′W

CHARLIE
THREE


Charts
4001, 4003, 4012 and 8006

43°30′N 65°00′W
43°30′N 64°00′W
43°00′N 64°00′W
43°00′N 65°00′W

Sub surface operations area.

1

DELTA
ONE

To
20,000 feet

Charts
4001, 4003, 4012 and 4320

44°19′N 64°00′W
44°19′N 63°45′W
44°10′N 63°45′W
44°10′N 64°00′W

Sub surface operations area.
Firing Exercise (FIREX)

1

DELTA
TWO

To
20,000 feet

Charts
4001, 4003, 4012 and 4320

44°19′N 63°45′W
44°19′N 63°30′W
44°10′N 63°30′W
44°10′N 63°45′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Charts
4013 and 8007

44°19′N 63°40′W
44°19′N 63°30′W
44°10′N 63°30′W
44°10′N 63°40′W

DELTA
THREE

To
20,000 feet

Charts
4001, 4003, 4012 and 4320

44°10′N 63°45′W
44°10′N 63°30′W
44°00′N 63°30′W
44°00′N 63°45′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Charts
4013 and 8007

44°10′N 63°40′W
44°10′N 63°30′W
44°00′N 63°30′W
44°00′N 63°40′W

DELTA
FOUR

To
20,000 feet

Charts
4001, 4003, 4012 and 4320

44°10′N 64°00′W
44°10′N 63°45′W
44°00′N 63°45′W
44°00′N 64°00′W

Sub surface operations area.
Firing Exercise (FIREX)

1

ECHO
ONE


Charts
4001, 4003 and 4013

44°59′N 62°00′W
44°00′N 62°00′W
44°00′N 63°00′W
44°42′N 63°00′W

Sub surface operations area.

1

Chart
4012

44°42′N 63°00′W
44°00′N 63°00′W
44°00′N 62°40′W

Chart
4320

44°42′N 63°00′W
44°00′N 63°00′W
44°00′N 62°45′W

Chart
8007

44°42′N 63°00′W
44°00′N 63°00′W
44°00′N 62°00′W
44°52′N 62°00′W

HOTBOX
ONE

To
5,000 feet

Charts
4013

44°00’N 063°00’W
44°19’N 063°00’W
44°19’N 062°30’W
44°00’N 062°30’W

Sub surface operations area.
Firing Exercise (FIREX)

1

ECHO
TWO

To
20,000 feet

Charts
4001, 4003 4012, 4013, 4320 and 8007

44°19′N 063°30′W
44°19′N 063°00′W
44°10′N 063°00′W
44°10′N 063°30′W

Sub surface operations area.
Firing Exercise (FIREX)

1

ECHO
THREE

To
20,000 feet

Charts
4001, 4003 4012, 4013, 4320 and 8007

44°10’N 063°30’W
44°10’N 063°00’W
44°00’N 063°00’W
44°00’N 063°30’W

Sub surface operations area.
Firing Exercise (FIREX)

1

FOXTROT
ONE


Charts
4001, 4003 and 4011

45°03′N 66°46′W
44°48′N 66°46′W
and
44°36′N 66°54′W
44°00′N 66°54′W
44°00′N 66°09′W

Sub surface operations area.

1

Chart
4012

Southern limit at
44°00′N 66°40′W
44°00′N 66°09′W


FOXTROT
TWO


Charts
4001, 4003 and 4011

43°43′N 66°00′W
43°00′N 66°00′W
43°00′N 66°54′W
44°00′N 66°54′W
44°00′N 66°09′W

Sub surface operations area.

1

Chart
4012

44°00′N 66°40′W
44°00′N 66°09′W
43°43′N 66°00′W
43°00′N 66°00′W
43°00′N 66°40′W

Chart
8006

43°33′N 66°00′W
43°00′N 66°00′W
43°00′N 66°36′W

FOXTROT
THREE


Charts
4001, 4003 and 4012

43°30′N 65°24′W
43°30′N 65°00′W
43°00′N 65°00′W
43°00′N 66°00′W
43°43′N 66°00′W

Sub surface operations area.

1

Chart
4011

43°00′N 65°30′W
43°00′N 66°00′W
43°43′N 66°00′W


Chart
8006

43°33.0′N 66°00.0′W
43°00.0′N 66°00.0′W
43°00.0′N 65°00.0′W
43°30.0′N 65°00.0 W
43°30.0′N 65°24.5′W



FOXTROT
FOUR


Charts
4001, 4003 and 8006

43°00′N 66°00′W
43°00′N 65°00′W
42°00′N 65°00′W
42°00′N 66°00′W

Sub surface operations area.

1

Chart
4011

43°00′N 66°00′W
43°00′N 65°30′W
42°27′N 66°00′W

Chart
4012

43°00′N 66°00′W
43°00′N 65°00′W
42°40′N 65°00′W
42°40′N 66°00′W

FOXTROT
FIVE


Charts
4001 and 4003

43°00′N 66°54′W
43°00′N 66°00′W
42°00′N 66°00′W
42°00′N 66°54′W

Sub surface operations area.

1

Chart
4011

43°00′N 66°54′W
43°00′N 66°00′W
42°27′N 66°00′W
42°27′N 66°54′W

Chart
4012

43°00′N 66°40′W
43°00′N 66°00′W
42°40′N 66°00′W
42°40′N 66°40′W

Chart
8006

43°00′N 66°36′W
43°00′N 66°00′W
42°00′N 66°00′W
42°00′N 66°36′W

GOLF
ONE

To
30,000 feet

Charts
4001, 4003 and 4012

44°00′N 64°00′W
44°00′N 63°30′W
43°30′N 63°30′W
43°30′N 64°00′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Charts
4013 and 8007

44°00′N 63°40′W
44°00′N 63°30′W
43°30′N 63°30′W
43°30′N 63°40′W

Chart
4320

44°00′N 64°00′W
44°00′N 63°30′W
43°55′N 63°30′W
43°55′N 64°00′W

Chart
8006

43°33′N 64°00′W
43°30′N 64°00′W
43°30′N 63°30′W
43°33′N 63°30′W

GOLF
TWO

To
30,000 feet

Charts
4001, 4003, 4012 and 8007

44°00′N 63°30′W
44°00′N 63°00′W
43°30′N 63°00′W
43°30′N 63°30′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Chart
4013

44°00′N 63°30′W
44°00′N 63°00′W
43°52′N 63°00′W
43°52′N 63°30′W

Chart
4320

44°00′N 63°30′W
44°00′N 63°00′W
43°55′N 63°00′W
43°55′N 63°30′W

Chart
8006

43°33′N 63°30′W
43°30′N 63°30′W
43°30′N 63°00′W
43°33′N 63°00′W

GOLF
THREE

To
30,000 feet

Charts
4001, 4003, 4012, 8006 and 8007

43°30′N 63°30′W
43°30′N 63°00′W
43°00′N 63°00′W
43°00′N 63°30′W

Sub surface operations area.
Firing Exercise (FIREX)

1

GOLF
FOUR

To
30,000 feet

Charts
4001, 4003, 4012 and 8006

43°30′N 64°00′W
43°30′N 63°30′W
43°00′N 63°30′W
43°00′N 64°00′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Chart
8007

43°30′N 63°40′W
43°30′N 63°30′W
43°00′N 63°30′W
43°00′N 63°40′W

HOTEL
ONE

To
30,000 feet

Charts
4001, 4003 and 8007

44°00′N 63°00′W
44°00′N 62°30′W
43°30′N 62°30′W
43°30′N 63°00′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Chart
4012

44°00′N 63°00′W
44°00′N 62°40′W
43°30′N 62°40′W
43°30′N 63°00′W

Chart
4013

44°00′N 63°00′W
44°00′N 62°30′W
43°52′N 62°30′W
43°52′N 63°00′W

Chart
4320

44°00′N 63°00′W
44°00′N 62°45′W
43°55′N 62°45′W
43°55′N 63°00′W

Chart
8006

43°33′N 63°00′W
43°30′N 63°00′W
43°30′N 62°34′W

HOTEL
TWO

To
30,000 feet

Charts
4001, 4003 and 8007

44°00′N 62°30′W
44°00′N 62°00′W
43°30′N 62°00′W
43°30′N 62°30′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Chart
4013

44°00′N 62°30′W
44°00′N 62°00′W
43°52′N 62°00′W
43°52′N 62°30′W

HOTEL
THREE

To
30,000 feet

Charts
4001, 4003 and 8007

43°30′N 62°30′W
43°30′N 62°00′W
43°00′N 62°00′W
43°00′N 62°30′W

Sub surface operations area.
Firing Exercise (FIREX)

1

HOTEL
FOUR

To
30,000 feet

Charts
4001, 4003 and 8007

43°30′N 63°00′W
43°30′N 62°30′W
43°00′N 62°30′W
43°00′N 63°00′W

Sub surface operations area.
Firing Exercise (FIREX)

1

Chart
4012

43°30′N 63°00′W
43°30′N 62°40′W
43°00′N 62°40′W
43°00′N 63°00′W

Chart
8006

43°00′N 62°34′W
43°00′N 63°00′W
43°30′N 63°00′W
43°30′N 62°34′W

INDIA


Charts
4001, 4003 and 4013

45°16′N 61°00′W
44°00′N 61°00′W
44°00′N 62°00′W
44°59′N 62°00′W

Sub surface operations area.

1

Chart
8007

44°52′N 62°00′W
44°00′N 62°00′W
44°00′N 61°00′W
44°52′N 61°00′W

JULIET


Charts
4001, 4003 and 4013

45°53′N 60°00′W
44°00′N 60°00′W
44°00′N 61°00′W
45°16′N 61°00′W

Sub surface operations area.

1

Chart
8007

44°52′N 61°00′W
44°00′N 61°00′W
44°00′N 60°00′W
44°52′N 60°00′W

LIMA
ONE


Charts
4001, 4003 and 8006

43°00′N 65°00′W
43°00′N 64°00′W
42°00′N 64°00′W
42°00′N 65°00′W

Sub surface operations area.

1

Chart
4012

43°00′N 65°00′W
43°00′N 64°00′W
42°40′N 64°00′W
42°40′N 65°00′W

LIMA
TWO


Charts
4001 and 4003

42°00′N 65°00′W
42°00′N 64°00′W
41°00′N 64°00′W
41°00′N 65°00′W

Sub surface operations area.

1

Chart
8006

41°24′N 65°00′W
42°00′N 65°00′W
42°00′N 64°00′W
41°24′N 64°00′W

LIMA
THREE


Charts
4001 and 4003

41°00′N 65°00′W
41°00′N 64°00′W
40°00′N 64°00′W
40°00′N 65°00′W

Sub surface operations area.

1

MIKE
ONE


Charts
4001, 4003 and 8006

43°00′N 64°00′W
43°00′N 63°00′W
42°00′N 63°00′W
42°00′N 64°00′W

Sub surface operations area.

1

Chart
4012

43°00′N 64°00′W
43°00′N 63°00′W
42°40′N 63°00′W
42°40′N 64°00′W

Chart
8007

43°00′N 63°40′W
43°00′N 63°00′W
42°44′N 63°00′W

HOTBOX
TWO

To
5,000 feet

Chart
4001, 4003 and 8006

42°50’N 064°00’W
43°00’N 064°00’W
43°00’N 063°30’W
42°50’N 063°30’W

Sub surface operations area.
Firing Exercise (FIREX)

1

MIKE
TWO


Charts
4001 and 4003

42°00′N 64°00′W
42°00′N 63°00′W
41°00′N 63°00′W
41°00′N 64°00′W

Sub surface operations area.

1

Chart
8006

41°24′N 64°00′W
42°00′N 64°00′W
42°00′N 63°00′W
41°24′N 63°00′W

MIKE
THREE


Charts
4001 and 4003

41°00′N 64°00′W
41°00′N 63°00′W
40°00′N 63°00′W
40°00′N 64°00′W

Sub surface operations area.

1

NOVEMBER
ONE


Charts
4001 and 4003

43°00′N 63°00′W
43°00′N 62°00′W
42°00′N 62°00′W
42°00′N 63°00′W

Sub surface operations area.

1

Chart
4012

43°00′N 63°00′W
43°00′N 62°40′W
42°40′N 62°40′W
42°40′N 63°00′W

Chart
8006

42°00′N 62°34′W
42°00′N 63°00′W
43°00′N 63°00′W
43°00′N 62°34′W

Chart
8007

42°44′N 63°00′W
43°00′N 63°00′W
43°00′N 62°00′W
42°44′N 62°00′W

NOVEMBER
TWO


Charts
4001 and 4003

42°00′N 63°00′W
42°00′N 62°00′W
41°00′N 62°00′W
41°00′N 63°00′W

Sub surface operations area.

1

Chart
8006

41°24′N 63°00′W
42°00′N 63°00′W
42°00′N 62°34′W

NOVEMBER
THREE


Charts
4001 and 4003

41°00′N 63°00′W
41°00′N 62°00′W
40°00′N 62°00′W
40°00′N 63°00′W

Sub surface operations area.

1

Diagram 1 Nova-Scotia Area


Gulf of St. Lawrence Area


Sea Area

Airspace

Location

Coordinates

Employment

Diagram

PAPA


Chart
4001

Gulf of St Lawrence
bounded by lines joining:
47°00′N 60°25′W
47°37′17.1″N 59°18′16.8″W
51°35′N 56°00′W
51°54′N 56°00′W
49°18′N 68°00′W
48°41′N 68°00′W

Sub surface operations area.

2

QUÉBEC
ONE


Chart
4001

46°56′N 55°30′W
46°00′N 55°30′W
45°17′N 60°00′W
45°53′N 60°00′W and
47°00′N 60°25′W to
47°37′17.1″N 59°18′16.8″W

Sub surface operations area.
*Does not include the French territorial waters of Saint-Pierre et Miquelon.

2 & 3

Chart
4003

45°53′N 60°00′W
45°17′N 60°00′W
45°35′N 58°15′W

Chart
4013

45°53′N 60°00′W
45°17′N 60°00′W
45°27′N 59°00′W

QUÉBEC
TWO


Chart
4001

45°17′N 60°00′W
46°00′N 55°30′W
45°20′N 55°30′W
44°45′N 60°00′W

Sub surface operations area.
*Does not include the French Territorial waters of Saint-Pierre et Miquelon.

3

Chart
4003

45°17′N 60°00′W
45°35′N 58°15′W
45°02′N 58°15′W
44°45′N 60°00′W

Chart
4013

45°17′N 60°00′W
45°27′N 59°00′W
44°55′N 59°00′W
44°45′N 60°00′W

Chart
8007

44°52.0′N 60°00.0′W
44°45.0′N 60°00.0′W
44°47.5′N 59°45.0′W

QUÉBEC
THREE


Chart
4001

44°45′N 60°00′W
45°20′N 55°30′W
44°00′N 55°30′W
44°00′N 60°00′W

Sub surface operations area.
*Does not include the French territorial waters of Saint-Pierre et Miquelon.

3

Chart
4003

44°45′N 60°00′W
45°02′N 58°15′W
44°00′N 58°15′W
44°00′N 60°00′W

Chart
4013

44°45′N 60°00′W
44°55′N 59°00′W
44°00′N 59°00′W
44°00′N 60°00′W

Chart
8007

44°00.0′N 59°45.0′W
44°00.0′N 60°00.0′W
44°45.0′N 60°00.0′W
44°47.5′N 59°45.0′W

ROMEO


Chart
4201
(Halifax Harbour)

An arc from shoreline to shoreline centred on 44°42′43″N 63°38′40″W with radius of 365 metres

Underwater demolition training
(Maximum explosive weight 10 Kilograms)

4

SIERRA
ONE


Chart
4001

48°40′N 53°05′W
48°40′N 50°00′W
46°47′N 50°00′W
46°00′N 55°30′W
46°56′N 55°30′W

Sub surface operations area.

3

SIERRA
TWO


Chart
4001

46°00′N 55°30′W
46°47′N 50°00′W
46°10′N 50°00′W
45°20′N 55°30′W

Sub surface operations area.

3

SIERRA
THREE


Chart
4001

45°20′N 55°30′W
46°10′N 50°00′W
44°00′N 50°00′W
44°00′N 55°30′W

Sub surface operations area.

3

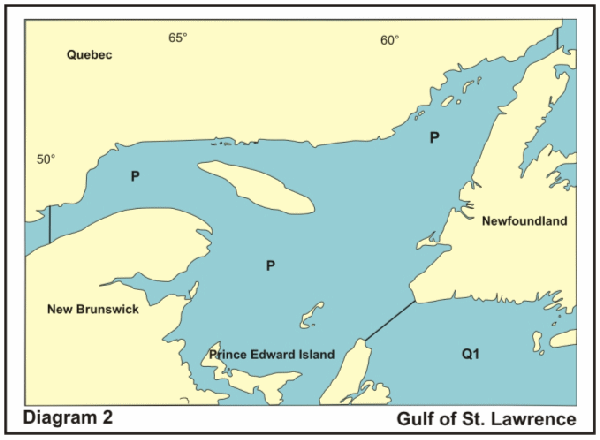

Diagram 2

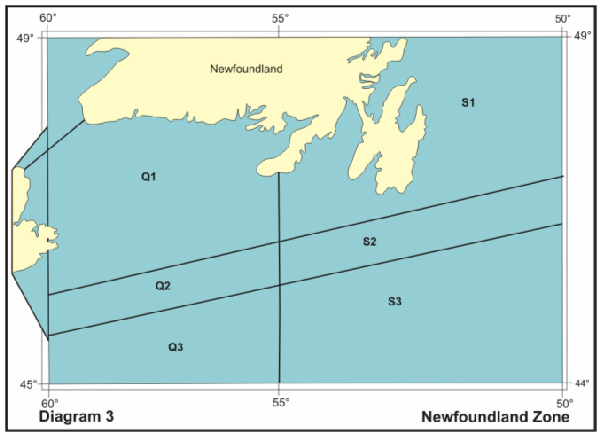

Diagram 3

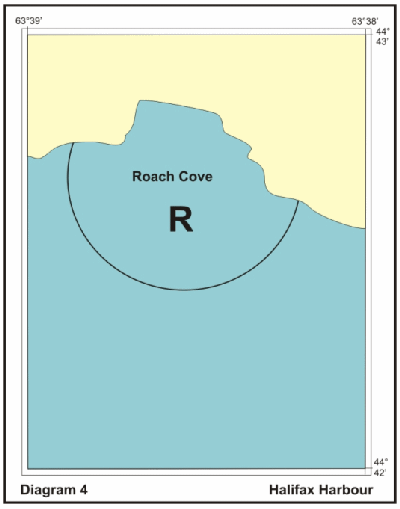

Diagram 4


Squaw Point (PEI) & Georgian Bay Firing Area

Designators

Location

Coordinates

Employment

Diagram

DND

DOT



Squaw Point, Prince Edward Island,
Firing Area
(Chart 4466)

From Squaw Point (46°11′25"N 63°02′58″W) extending 1.9 nautical mile limited by an arc of 029°, from 184° to 213°.


6


CYD501

CYD501
Ontario
(Firing Area of Meaford)
(Chart 2201)

44°42′48"N 80°46′11″W
44°44′40″N 80°46′22″W
44°44′40″N 80°39′32″W
44°44′25″N 80°37′17″W
44°42′50″N 80°35′45″W
44°41′11″N 80°35′35″W
44°39′45″N 80°37′41″W

1S

5

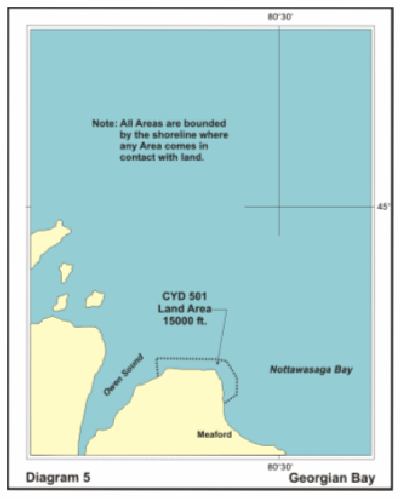

Diagram 5

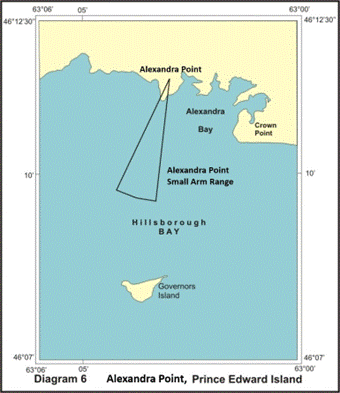

Diagram 6



Lake Ontario & Erie Area Firing Area

Designators

Location

Coordinates

Employment

Diagram

DND

DOT



Erie Lake (Cedar Springs, Ontario)
(Chart 2100)

Offshore, from
42°16′00″N 82°01′00″W, limited by an arc of 020°; from 308 1/2° to 328 ½°
of 4,000 yards.


8



Ontario Lake, Grimsby,
Firing Area
(Chart 2077)

43°13′21"N 79°36′59″W
43°13′28″N 79°36′59″W
43°14′45″N 79°36′13″W
43°14′29″N 79°35′33″W
43°13′18″N 79°36′33″W
43°13′12″N 79°36′47″W


7



Ontario Lake, Niagara-on-the-Lake
Firing Area
(Chart 2043)

43°15′31"N 79°06′13″W
43°16′22″N 79°07′43″W
43°16′46″N 79°07′13″W
43°15′45″N 79°05′55″W
43°15′35″N 79°05′53″W


8

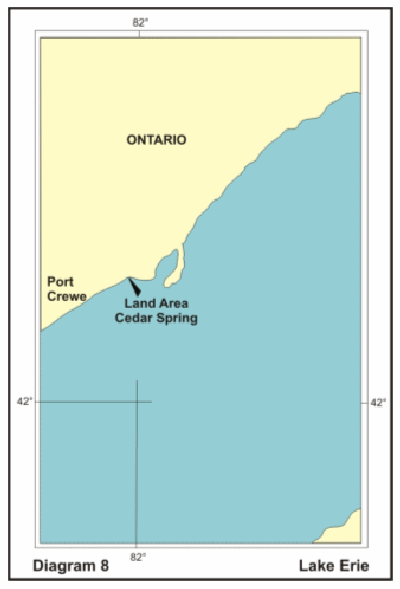

Diagram 8


DND Inspection Services - Lake St. Pierre (Québec) Area

Designators

Location

Coordinates

Employment

Diagram

DND

DOT


CYR606

Lac St. Pierre, Quebec
(South of Shipping Channel)
(Chart 1312)

Marine portion bounded by south shore of
Lake St. Pierre and
lines joining:
46°15′00″N 72°39′14″W
46°15′00″N 72°43′20″W
46°12′18″N 72°48′41″W
46°10′54″N 72°54′18″W
46°09′20″N 72°56′20″W
46°07′21″N 72°55′00″W

1In continuous use
2S

9

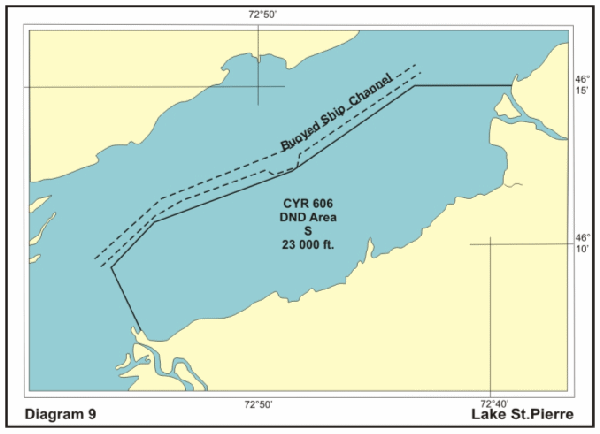

Diagram 9


National Research Council Areas - Hudson Bay

Rocket Area

Location

Coordinates

Employment

Diagram

DND

DOT



Hudson Bay and Strait Churchill, Manitoba
(Chart 5000)

AREA A

58°56′00″N 94°00′00″W
57°18′00″N 94°00′00″W
57°20′00″N 91°08′00″W
57°04′00″N 90°00′00″W
59°46′30″N 90°00′00″W

AREA B

59°46′30″N 90°00′′00″W
57°04′00″N 90°00′00″W
55°13′00″N 82°30′00″W
55°28′00″N 82°00′00″W
61°27′00″N 82°00′00″W

AREA C

55°28′00″N 82°00′00″W
58°55′00″N 78°28′00″W
63°15′00″N 78°28′00″W
63°15′00″N 83°00′00″W
60°21′00″N 94°00′00″W
58°56′00″N 94°00′00″W
59°46′30″N 90°00′00″W
61°27′00″N 82°00′00″W

AREA D
63°15′00″N 83°00′′00″W
63°15′00″N 90°00′00″W
60°21′00″N 94°00′00″W

1R
2Dependent on the characteristics of each rocket, the trajectory will cross all altitudes up to approximately 600,000 feet during a period not exceeding 30 minutes the time of launch. It is that majority of rockets launched will impact at a point within Area A (see diagram 10). Radar and other surveillance procedures will be used over the area during the range operations. No rocket will be launched if it is known that an aircraft or ship is likely to be endangered. Further details may be obtained through Thunder Bay MCTS

Telephone:Officer in Charge
 807-345-4618;

MCTS Operations:
807-345-5190;
Facsimile: 807-345-2688

10



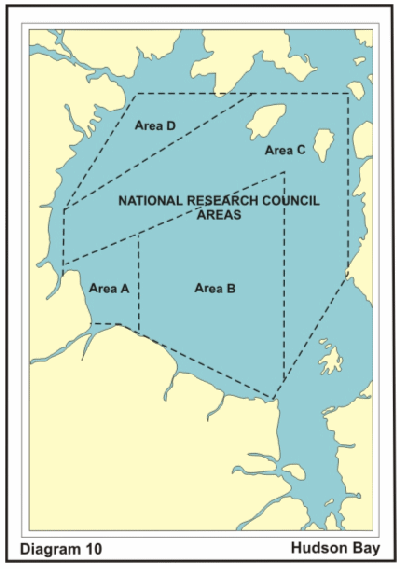

Diagram 10

Authority: Department of National Defence (NDHQ)


West Coast Area

Sea Area

Airspace

Location

Coordinates

Employment

Diagram

CHARLIE
ALPHA 1


Chart
3000

51°30′00″N 129°20′00″W
51°30′00″N 129°00′00″W
51°15′00″N 129°00′00″W
51°15′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE
ALPHA 2


Chart
3000

51°30′00″N 129°00′00″W
51°30′00″N 128°40′00″W
51°15′00″N 128°40′00″W
51°15′00″N 129°00′00″W

Sub surface operations area.

11

CHARLIE
ALPHA 3


Chart
3000

51°30′00″N 128°40′00″W
51°30′00″N 128°20′00″W
51°15′00″N 128°20′00″W
51°15′00″N 128°40′00″W

Sub surface operations area.

11

CHARLIE
ALPHA 4


Chart
3000

51°30′00″N 128°20′00″W
51°30′00″N 128°00′00″W
51°15′00″N 128°00′00″W
51°15′00″N 128°20′00″W

Sub surface operations area.

11

CHARLIE
ALPHA 5


Chart
3000

51°30′00″N 128°00′00″W
51°30′00″N 127°40′00″W
51°15′00″N 127°40′00″W
51°15′00″N 128°00′00″W

Sub surface operations area.

11

Areas CHARLIE ALPHA 6 to CHARLIE ALPHA 14 inclusive not allocated

CHARLIE
BRAVO 1


Chart
3000

51°15′00″N 129°20′00″W
51°15′00″N 129°00′00″W
51°00′00″N 129°00′00″W
51°00′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE
BRAVO 2


Chart
3000

51°15′00″N 129°00′00″W
51°15′00″N 128°40′00″W
51°00′00″N 128°40′00″W
51°00′00″N 129°00′00″W

Sub surface operations area.

11

CHARLIE
BRAVO 3


Chart
3000

51°15′00″N 128°40′00″W
51°15′00″N 128°20′00″W
51°00′00″N 128°20′00″W
51°00′00″N 128°40′00″W

Sub surface operations area.

11

CHARLIE
BRAVO 4


Chart
3000

51°15′00″N 128°20′00″W
51°15′00″N 128°00′00″W
51°00′00″N 128°00′00″W
51°00′00″N 128°20′00″W

Sub surface operations area.

11

CHARLIE
BRAVO 5


Chart
3000

51°15′00″N 128°00′00″W
51°15′00″N 127°40′00″W
51°00′00″N 127°40′00″W
51°00′00″N 128°00′00″W

Sub surface operations area.

11

Areas CHARLIE BRAVO 6 to CHARLIE BRAVO 14 inclusive not allocated

CHARLIE
CHARLIE 1


Chart
3000

51°00′00″N 129°20′00″W
51°00′00″N 129°00′00″W
50°45′00″N 129°00′00″W
50°45′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE
CHARLIE 2


Chart
3000

51°00′00″N 129°00′00″W
51°00′00″N 128°40′00″W
50°45′00″N 128°40′00″W
50°45′00″N 129°00′00″W

Sub surface operations area.

11

CHARLIE
CHARLIE 3


Chart
3000

51°00′00″N 128°40′00″W
51°00′00″N 128°20′00″W
50°45′00″N 128°20′00″W
50°45′00″N 128°40′00″W

Sub surface operations area.

11

CHARLIE
CHARLIE 4


Chart
3000

51°00′00″N 128°20′00″W
51°00′00″N 128°00′00″W
50°45′00″N 128°00′00″W
50°45′00″N 128°20′00″W

Sub surface operations area.

11

CHARLIE
CHARLIE 5


Chart
3000

51°00′00″N 128°00′00″W
51°00′00″N 127°40′00″W
50°45′00″N 127°40′00″W
50°45′00″N 128°00′00″W

Sub surface operations area.

11

Areas CHARLIE CHARLIE 6 to CHARLIE CHARLIE 14 inclusive not allocated

CHARLIE DELTA 1

CYR 106 to
23,000 feet

Chart
3000

50°45′00″N 129°20′00″W
50°45′00″N 129°00′00″W
50°30′00″N 129°00′00″W
50°30′00″N 129°20′00″W

Sub surface operations area.

11 & 12

CHARLIE DELTA 2


Chart
3000

50°45′00″N 129°00′00″W
50°45′00″N 128°40′00″W
50°30′00″N 128°40′00″W
50°30′00″N 129°00′00″W

Sub surface operations area.

11

CHARLIE DELTA 3


Chart
3000

50°45′00″N 128°40′00″W
50°45′00″N 128°20′00″W
50°30′00″N 128°20′00″W
50°30′00″N 128°40′00″W

Sub surface operations area.

11

CHARLIE DELTA 4


Chart
3000

50°45′00″N 128°20′00″W
50°45′00″N 128°00′00″W
50°30′00″N 128°00′00″W
50°30′00″N 128°20′00″W

Sub surface operations area.

11

CHARLIE DELTA 5


Chart
3000

50°45′00″N 128°00′00″W
50°45′00″N 127°40′00″W
50°30′00″N 127°40′00″W
50°30′00″N 128°00′00″W

Sub surface operations area.

11

CHARLIE DELTA 6


Chart
3000

50°45′00″N 127°40′00″W
50°45′00″N 127°20′00″W
50°30′00″N 127°20′00″W
50°30′00″N 127°40′00″W

Sub surface operations area.

11


Areas CHARLIE DELTA 7 to CHARLIE DELTA 14 inclusive not allocated

CHARLIE
ECHO 1

CYR 106 to
23,000 feet

Chart
3000

50°30′00″N 129°20′00″W
50°30′00″N 129°00′00″W
50°15′00″N 129°00′00″W
50°15′00″N 129°20′00″W

Sub surface operations area.

11 & 12

CHARLIE
ECHO 2

CYR 106 to
23,000 feet

Chart
3000

50°30′00″N 129°00′00″W
50°30′00″N 128°40′00″W
50°15′00″N 128°40′00″W
50°15′00″N 129°00′00″W

Sub surface operations area.

11 & 12

CHARLIE
ECHO 3


Chart
3000

50°30′00″N 128°40′00″W
50°30′00″N 128°20′00″W
50°15′00″N 128°20′00″W
50°15′00″N 128°40′00″W

Sub surface operations area.

11

CHARLIE
ECHO 4


Chart
3000

50°30′00″N 128°20′00″W
50°30′00″N 128°00′00″W
50°15′00″N 128°00′00″W
50°15′00″N 128°20′00″W

Sub surface operations area.

11

CHARLIE
ECHO 5


Chart
3000

50°30′00″N 128°00′00″W
50°30′00″N 127°40′00″W
50°15′00″N 127°40′00″W
50°15′00″N 128°00′00″W

Sub surface operations area.

11

CHARLIE
ECHO 6


Chart
3000

50°30′00″N 127°40′00″W
50°30′00″N 127°20′00″W
50°15′00″N 127°20′00″W
50°15′00″N 127°40′00″W

Sub surface operations area.

11

Areas CHARLIE ECHO 7 to CHARLIE ECHO 14 inclusive not allocated

CHARLIE
FOXTROT 1

CYR 106 to
23,000 feet

Chart
3000

50°15′00″N 129°20′00″W
50°15′00″N 129°00′00″W
50°00′00″N 129°00′00″W
50°00′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE
FOXTROT 2

CYR 106 to
23,000 feet

Chart
3000

50°15′00″N 129°00′00″W
50°15′00″N 128°40′00″W
50°00′00″N 128°40′00″W
50°00′00″N 129°00′00″W

Sub surface operations area.

11

CHARLIE
FOXTROT 3

CYR 106 to
23,000 feet

Chart
3000

50°15′00″N 128°40′00″W
50°15′00″N 128°20′00″W
50°00′00″N 128°20′00″W
50°00′00″N 128°40′00″W

Sub surface operations area.

11 & 12

CHARLIE
FOXTROT 4

CYR 106 to
23,000 feet

Chart
3000

50°15′00″N 128°20′00″W
50°15′00″N 128°00′00″W
50°00′00″N 128°00′00″W
50°00′00″N 128°20′00″W

Sub surface operations area.

11

CHARLIE
FOXTROT 5


Chart
3000

50°15′00″N 128°00′00″W
50°15′00″N 127°40′00″W
50°00′00″N 127°40′00″W
50°00′00″N 128°00′00″W

Sub surface operations area.

11

CHARLIE
FOXTROT 6


Chart
3000

50°15′00″N 127°40′00″W
50°15′00″N 127°20′00″W
50°00′00″N 127°20′00″W
50°00′00″N 127°40′00″W

Sub surface operations area.

11

CHARLIE
FOXTROT 7


Chart
3000

50°15′00″N 127°20′00″W
50°15′00″N 127°00′00″W
50°00′00″N 127°00′00″W
50°00′00″N 127°20′00″W

Sub surface operations area.

11

Areas CHARLIE FOXTROT 8 to CHARLIE FOXTROT 14 inclusive not allocated

CHARLIE
GOLF 1

CYR 106 to
23,000 feet

Chart
3000

50°00′00″N 129°20′00″W
50°00′00″N 129°00′00″W
49°45′00″N 129°00′00″W
49°45′00″N 129°20′00″W

Sub surface operations area.

11 & 12

CHARLIE
GOLF 2

CYR 106 to
23,000 feet

Chart
3000

50°00′00″N 129°00′00″W
50°00′00″N 128°40′00″W
49°45′00″N 128°40′00″W
49°45′00″N 129°00′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
GOLF 3

CYR 106 to
23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

50°00′00″N 128°40′00″W
50°00′00″N 128°20′00″W
49°45′00″N 128°20′00″W
49°45′00″N 128°40′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
GOLF 4

CYR 106 to
23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

50°00′00″N 128°20′00″W
50°00′00″N 128°00′00″W
49°45′00″N 128°00′00″W
49°45′00″N 128°20′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE
GOLF 5

CYR 106 to
23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

50°00′00″N 128°00′00″W
50°00′00″N 127°40′00″W
49°45′00″N 127°40′00″W
49°45′00″N 128°00′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE
GOLF 6

CYR 106 to
23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

50°00′00″N 127°40′00″W
50°00′00″N 127°20′00″W
49°45′00″N 127°20′00″W
49°45′00″N 127°40′00″W

Sub surface operations area.

11

CHARLIE
GOLF 7


Chart
3000

50°00′00″N 127°20′00″W
50°00′00″N 127°00′00″W
49°45′00″N 127°00′00″W
49°45′00″N 127°20′00″W

Sub surface operations area.

11

CHARLIE
GOLF 8


Chart
3000

50°00′00″N 127°00′00″W
50°00′00″N 126°40′00″W
49°45′00″N 126°40′00″W
49°45′00″N 127°00′00″W

Sub surface operations area.

11

CHARLIE
GOLF 9


Chart
3000

50°00′00″N 126°40′00″W
50°00′00″N 126°20′00″W
49°45′00″N 126°20′00″W
49°45′00″N 126°40′00″W

Sub surface operations area.

11

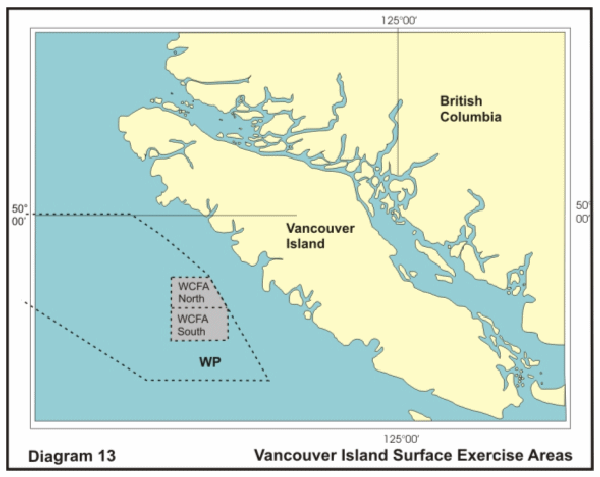

♣ = Only that portion of the area that is within Area WP (Defined at Diagram 11)

Areas CHARLIE GOLF 10 to CHARLIE GOLF 14 inclusive not allocated

CHARLIE
HOTEL 1

CYR 106 to 23,000 feet

Chart
3000

49°45′00″N 129°20′00″W
49°45′00″N 129°00′00″W
49°30′00″N 129°00′00″W
49°30′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE
HOTEL 2

CYR 106 to 23,000 feet

Chart
3000

49°45′00″N 129°00′00″W
49°45′00″N 128°40′00″W
49°30′00″N 128°40′00″W
49°30′00″N 129°00′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
HOTEL 3

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°45′00″N 128°40′00″W
49°45′00″N 128°20′00″W
49°30′00″N 128°20′00″W
49°30′00″N 128°40′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
HOTEL 4

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°45′00″N 128°20′00″W
49°45′00″N 128°00′00″W
49°30′00″N 128°00′00″W
49°30′00″N 128°20′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
HOTEL 5

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°45′00″N 128°00′00″W
49°45′00″N 127°40′00″W
49°30′00″N 127°40′00″W
49°30′00″N 128°00′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
HOTEL 6

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°45′00″N 127°40′00″W
49°45′00″N 127°20′00″W
49°30′00″N 127°20′00″W
49°30′00″N 127°40′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE
HOTEL 7

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°45′00″N 127°20′00″W
49°45′00″N 127°00′00″W
49°30′00″N 127°00′00″W
49°30′00″N 127°20′00″W

Sub surface operations area.
♣ Firing Exercise Area

11 & 12

CHARLIE
HOTEL 8

CYR 106 to 23,000 feet

Chart
3000

49°45′00″N 127°00′00″W
49°45′00″N 126°40′00″W
49°30′00″N 126°40′00″W
49°30′00″N 127°00′00″W

Sub surface operations area.

11

CHARLIE
HOTEL 9


Chart
3000

49°45′00″N 126°40′00″W
49°45′00″N 126°20′00″W
49°30′00″N 126°20′00″W
49°30′00″N 126°40′00″W

Sub surface operations area.

11

CHARLIE
HOTEL 10


Chart
3000

49°45′00″N 126°20′00″W
49°45′00″N 126°00′00″W
49°30′00″N 126°00′00″W
49°30′00″N 126°20′00″W

Sub surface operations area.

11

♣ = Only that portion of the area that is within Area WP (Defined at Diagram 11)

Areas CHARLIE HOTEL 11 to CHARLIE HOTEL 14 inclusive not allocated

CHARLIE
INDIA 1

CYR 106 to 23,000 feet

Chart
3000

49°30′00″N 129°20′00″W
49°30′00″N 129°00′00″W
49°15′00″N 129°00′00″W
49°15′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE
INDIA 2

CYR 106 to 23,000 feet

Chart
3000

49°30′00″N 129°00′00″W
49°30′00″N 128°40′00″W
49°15′00″N 128°40′00″W
49°15′00″N 129°00′00″W

Sub surface operations area.
Firing Exercise Area.

11 &12

CHARLIE
INDIA 3

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°30′00″N 128°40′00″W
49°30′00″N 128°20′00″W
49°15′00″N 128°20′00″W
49°15′00″N 128°40′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE
INDIA 4

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°30′00″N 128°20′00″W
49°30′00″N 128°00′00″W
49°15′00″N 128°00′00″W
49°15′00″N 128°20′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
INDIA 5

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°30′00″N 128°00′00″W
49°30′00″N 127°40′00″W
49°15′00″N 127°40′00″W
49°15′00″N 128°00′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE
INDIA 6

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°30′00″N 127°40′00″W
49°30′00″N 127°20′00″W
49°15′00″N 127°20′00″W
49°15′00″N 127°40′00″W

Sub surface operations area.
Primary Firing Exercise Area.

11 & 12

CHARLIE
INDIA 7

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°30′00″N 127°20′00″W
49°30′00″N 127°00′00″W
49°15′00″N 127°00′00″W
49°15′00″N 127°20′00″W

Sub surface operations area.
Primary Firing Exercise Area.

11 & 12

CHARLIE
INDIA 8

CYR 106 to 23,000 feet

Chart
3000

49°30′00″N 127°00′00″W
49°30′00″N 126°40′00″W
49°15′00″N 126°40′00″W
49°15′00″N 127°00′00″W

Sub surface operations area.

11

CHARLIE
INDIA 9

CYR 106 to 23,000 feet

Chart
3000

49°30′00″N 126°40′00″W
49°30′00″N 126°20′00″W
49°15′00″N 126°20′00″W
49°15′00″N 126°40′00″W

Sub surface operations area.

11

CHARLIE
INDIA 10


Chart
3000

49°30′00″N 126°20′00″W
49°30′00″N 126°00′00″W
49°15′00″N 126°00′00″W
49°15′00″N 126°20′00″W

Sub surface operations area.

11

CHARLIE INDIA 11


Chart
3000

49°30′00″N 126°00′00″W
49°30′00″N 125°40′00″W
49°15′00″N 125°40′00″W
49°15′00″N 126°00′00″W

Sub surface operations area.

11

♣ = Only that portion of the area that is within Area WP (Defined at Diagram 11)

Areas CHARLIE INDIA 12 to CHARLIE INDIA 14 inclusive not allocated

CHARLIE JULIET 1

CYR 106 to 23,000 feet

Chart
3000

49°15′00″N 129°20′00″W
49°15′00″N 129°00′00″W
49°00′00″N 129°00′00″W
49°00′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE JULIET 2

CYR 106 to 23,000 feet

Chart
3000

49°15′00″N 129°00′00″W
49°15′00″N 128°40′00″W
49°00′00″N 128°40′00″W
49°00′00″N 129°00′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE JULIET 3

CYR 106 to 23,000 feet

Chart
3000

49°15′00″N 128°40′00″W
49°15′00″N 128°20′00″W
49°00′00″N 128°20′00″W
49°00′00″N 128°40′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE JULIET 4

CYR 106 to 23,000 feet

Chart
3000

49°15′00″N 128°20′00″W
49°15′00″N 128°00′00″W
49°00′00″N 128°00′00″W
49°00′00″N 128°20′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE JULIET 5

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°15′00″N 128°00′00″W
49°15′00″N 127°40′00″W
49°00′00″N 127°40′00″W
49°00′00″N 128°00′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE JULIET 6

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°15′00″N 127°40′00″W
49°15′00″N 127°20′00″W
49°00′00″N 127°20′00″W
49°00′00″N 127°40′00″W

Sub surface operations area.
Primary Firing Exercise Area Surface.

11 & 12

CHARLIE JULIET 7

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°15′00″N 127°20′00″W
49°15′00″N 127°00′00″W
49°00′00″N 127°00′00″W
49°00′00″N 127°20′00″W

Sub surface operations area.
♣ Primary Firing Exercise Area Surface.

11 & 12

CHARLIE JULIET 8

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°15′00″N 127°00′00″W
49°15′00″N 126°40′00″W
49°00′00″N 126°40′00″W
49°00′00″N 127°00′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE JULIET 9

CYR 106 to 23,000 feet
CYR 101
23,000 to 60,000 feet

Chart
3000

49°15′00″N 126°40′00″W
49°15′00″N 126°20′00″W
49°00′00″N 126°20′00″W
49°00′00″N 126°40′00″W

Sub surface operations area.

11

CHARLIE JULIET 10


Chart
3000

49°15′00″N 126°20′00″W
49°15′00″N 126°00′00″W
49°00′00″N 126°00′00″W
49°00′00″N 126°20′00″W

Sub surface operations area.

11

CHARLIE JULIET 11


Chart
3000

49°15′00″N 126°00′00″W
49°15′00″N 125°40′00″W
49°00′00″N 125°40′00″W
49°00′00″N 126°00′00″W

Sub surface operations area.

11

CHARLIE JULIET 12


Chart
3000

49°15′00″N 125°40′00″W
49°15′00″N 125°20′00″W
49°00′00″N 125°20′00″W
49°00′00″N 125°40′00″W

Sub surface operations area.

11

CHARLIE JULIET 13


Chart
3000

49°15′00″N 125°20′00″W
49°15′00″N 125°00′00″W
49°00′00″N 125°00′00″W
49°00′00″N 125°20′00″W

Sub surface operations area.

11

♣ = Only that portion of the area that is within Area WP (Defined at Diagram 11)

Area CHARLIE JULIET 14 not allocated

CHARLIE KILO 1

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 129°20′00″W
49°00′00″N 129°00′00″W
48°45′00″N 129°00′00″W
48°45′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE KILO 2

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 129°00′00″W
49°00′00″N 128°40′00″W
48°45′00″N 128°40′00″W
48°45′00″N 129°00′00″W

Sub surface operations area.

11

CHARLIE KILO 3

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 128°40′00″W
49°00′00″N 128°20′00″W
48°45′00″N 128°20′00″W
48°45′00″N 128°40′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE KILO 4

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 128°20′00″W
49°00′00″N 128°00′00″W
48°45′00″N 128°00′00″W
48°45′00″N 128°20′00″W

Sub surface operations area.
♣ Firing Exercise Area

11 & 12

CHARLIE KILO 5

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 128°00′00″W
49°00′00″N 127°40′00″W
48°45′00″N 127°40′00″W
48°45′00″N 128°00′00″W

Sub surface operations area.
Firing Exercise Area

11 & 12

CHARLIE KILO 6

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 127°40′00″W
49°00′00″N 127°20′00″W
48°45′00″N 127°20′00″W
48°45′00″N 127°40′00″W

Sub surface operations area.
Firing Exercise Area

11 & 12

CHARLIE KILO 7

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 127°20′00″W
49°00′00″N 127°00′00″W
48°45′00″N 127°00′00″W
48°45′00″N 127°20′00″W

Sub surface operations area.
Firing Exercise Area.

11 & 12

CHARLIE KILO 8

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 127°00′00″W
49°00′00″N 126°40′00″W
48°45′00″N 126°40′00″W
48°45′00″N 127°00′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE KILO 9

CYR 106 to 23,000 feet

Chart
3000

49°00′00″N 126°40′00″W
49°00′00″N 126°20′00″W
48°45′00″N 126°20′00″W
48°45′00″N 126°40′00″W

Sub surface operations area.

11

CHARLIE KILO 10


Chart
3000

49°00′00″N 126°20′00″W
49°00′00″N 126°00′00″W
48°45′00″N 126°00′00″W
48°45′00″N 126°20′00″W

Sub surface operations area.

11

CHARLIE KILO 11


Chart
3000

49°00′00″N 126°00′00″W
49°00′00″N 125°40′00″W
48°45′00″N 125°40′00″W
48°45′00″N 126°00′00″W

Sub surface operations area.

11

CHARLIE KILO 12


Chart
3000

49°00′00″N 125°40′00″W
49°00′00″N 125°20′00″W
48°45′00″N 125°20′00″W
48°45′00″N 125°40′00″W

Sub surface operations area.

11

CHARLIE KILO 13


Chart
3000

49°00′00″N 125°20′00″W
49°00′00″N 125°00′00″W
48°45′00″N 125°00′00″W
48°45′00″N 125°20′00″W

Sub surface operations area.

11

♣ = Only that portion of the area that is within Area WP (Defined at Diagram 11)

Area CHARLIE KILO 14 not allocated

CHARLIE LIMA 1


Chart
3000

48°45′00″N 129°20′00″W
48°45′00″N 129°00′00″W
48°30′00″N 129°00′00″W
48°30′00″N 129°20′00″W

Sub surface operations area.

11

CHARLIE LIMA 2

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 129°00′00″W
48°45′00″N 128°40′00″W
48°30′00″N 128°40′00″W
48°30′00″N 129°00′00″W

Sub surface operations area.

11

CHARLIE LIMA 3

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 128°40′00″W
48°45′00″N 128°20′00″W
48°30′00″N 128°20′00″W
48°30′00″N 128°40′00″W

Sub surface operations area.

11

CHARLIE LIMA 4

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 128°20′00″W
48°45′00″N 128°00′00″W
48°30′00″N 128°00′00″W
48°30′00″N 128°20′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE LIMA 5

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 128°00′00″W
48°45′00″N 127°40′00″W
48°30′00″N 127°40′00″W
48°30′00″N 128°00′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE LIMA 6

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 127°40′00″W
48°45′00″N 127°20′00″W
48°30′00″N 127°20′00″W
48°30′00″N 127°40′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE LIMA 7

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 127°20′00″W
48°45′00″N 127°00′00″W
48°30′00″N 127°00′00″W
48°30′00″N 127°20′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE LIMA 8

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 127°00′00″W
48°45′00″N 126°40′00″W
48°30′00″N 126°40′00″W
48°30′00″N 127°00′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE LIMA 9

CYR 106 to 23,000 feet

Chart
3000

48°45′00″N 126°40′00″W
48°45′00″N 126°20′00″W
48°30′00″N 126°20′00″W
48°30′00″N 126°40′00″W

Sub surface operations area.
♣ Firing Exercise Area.

11 & 12

CHARLIE LIMA 10


Chart
3000

48°45′00″N 126°20′00″W
48°45′00″N 126°00′00″W
48°30′00″N 126°00′00″W
48°30′00″N 126°20′00″W

Sub surface operations area.

11

CHARLIE LIMA 11


Chart
3000

48°45′00″N 126°00′00″W
48°45′00″N 125°40′00″W
48°30′00″N 125°40′00″W
48°30′00″N 126°00′00″W

Sub surface operations area.

11

CHARLIE LIMA 12


Chart
3000

48°45′00″N 125°40′00″W
48°45′00″N 125°20′00″W
48°30′00″N 125°20′00″W
48°30′00″N 125°40′00″W

Sub surface operations area.

11

CHARLIE LIMA 13


Chart
3000

48°45′00″N 125°20′00″W
48°45′00″N 125°00′00″W
48°30′00″N 125°00′00″W
48°30′00″N 125°20′00″W

Sub surface operations area.

11

♣ = Only that portion of the area that is within Area WP (Defined at Diagram 11)

Note:All Vancouver Island (VI) Areas are bounded by the shoreline where any area comes in contact
 with land.

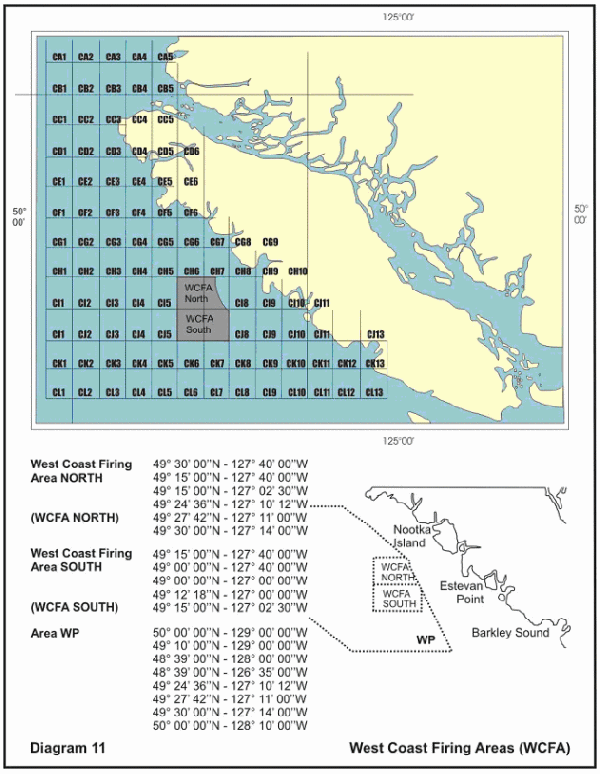

Diagram 11

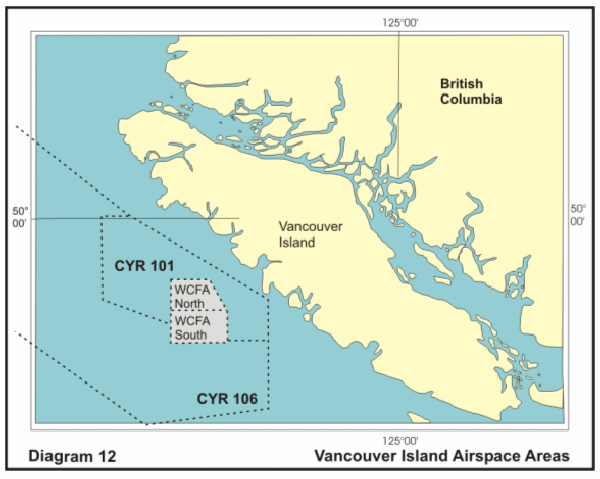

Diagram 12

Diagram 13

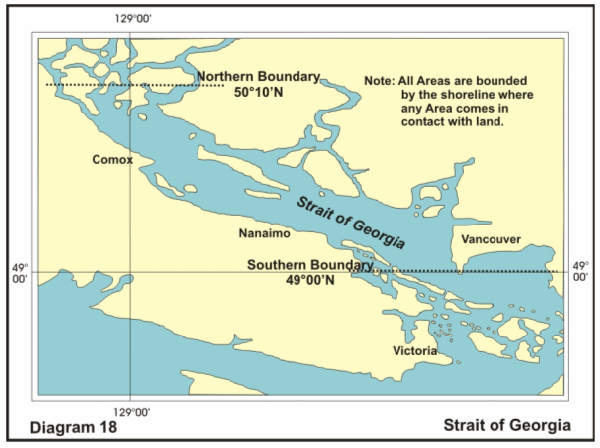

Strait of Georgia (Area SOG)

Sea Area

Airspace

Location

Coordinates

Employment

Diagram

Strait of Georgia
(AREA SOG)


Charts
3513, 3512, and 3463

Area bounded to the West by Vancouver Island East by British Columbia mainland North by
lat. 50°10′00″N; and
South by lat. 49°00′00″N.

Sub surface operations area.

18

WC


Chart
3462

48°35′25″N 123°22′18″W
48°35′25″N 123°21′48″W
48°31′57″N 123°19′42″W
48°31′57″N 123°21′59″W

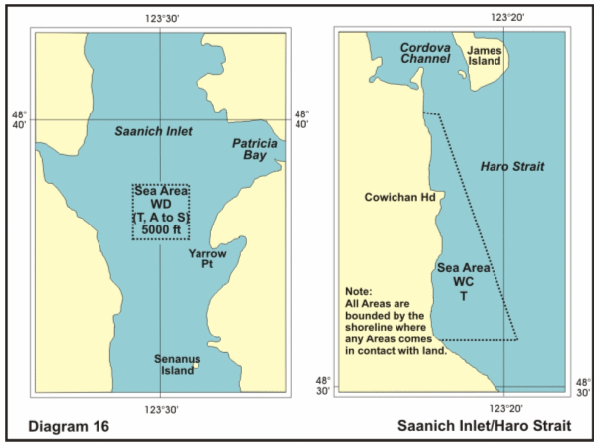

Firing Exercise (Torpedo) (TORPEX)
Sub surface operations area.

16

WD

To
5,000 feet

Chart
3441

48°38′48″N 123°30′45″W
48°38′48″N 123°29′15″W
48°37′48″N 123°29′15″W
48°37′48″N 123°30′45″W

Surface and
Sub surface general operations area.

16

WE


Chart
3463

49°11′00″N 123°24′00″W
49°17′00″N 123°43′00″W
49°21′00″N 123°38′00″W
49°16′00″N 123°20′00″W

Non-firing exercises.
Sub surface operations area.

14

WF


Chart
3512

49°19′18″N 123°43′30″W
49°21′18″N 124°08′00″W
49°28′42″N 124°08′00″W
49°24′18″N 123°43′30″W

Air, Sub surface and surface operations area.

14

WG

To
13,500 feet
CYR 107

Chart
3512

49°21′28″N 124°09′30″W
49°21′00″N 123°48′24″W
49°14′50″N 123°48′24″W
49°18′02″N 124°09′30″W

Air, Sub surface and surface operations area.
Firing Exercise (Torpedo) (TORPEX)

14 & 15

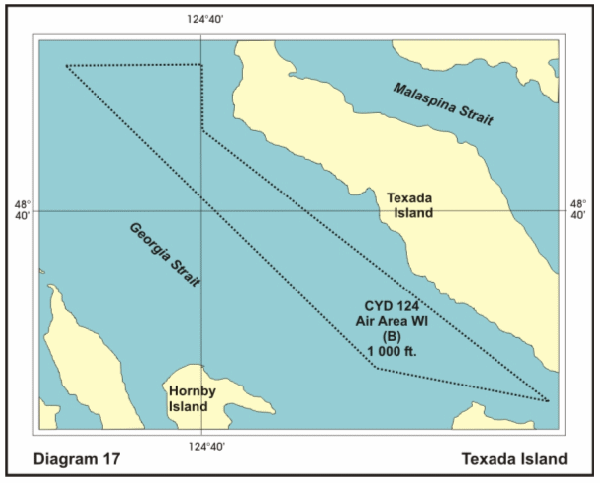

WI

To
1,000 feet
CYA 124

Chart
3513

49°46′30″N 124°50′00″W
49°46′30″N 124°40′00″W
49°43′30″N 124°40′00″W
49°31′30″N 124°16′00″W
49°33′00″N 124°28′00″W

Air and Sub surface exercise area.
Firing Exercise
(Air Dropped Explosives) (EEREX)

17

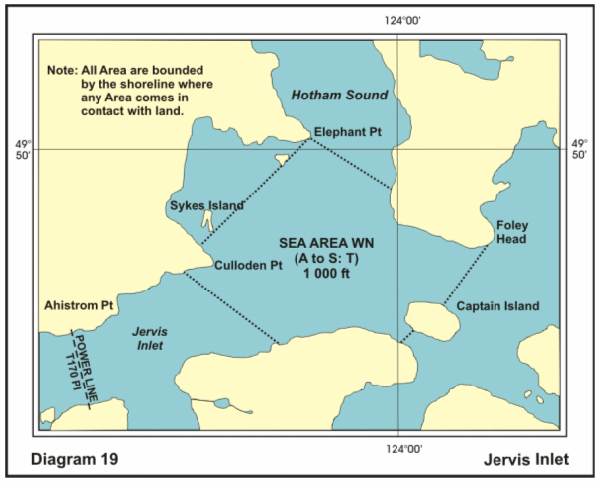

WN

To
1,000 feet

Chart
3514

49°50′06″N 124°02′12″W
49°48′21″N 124°05′06″W
49°47′51″N 124°05′26″W
49°46′40″N 124°03′16″W
49°46′41″N 123°59′50″W
49°46′54″N 123°59′32″W
49°47′22″N 123°58′54″W
49°48′30″N 123°57′30″W
49°49′23″N 124°00′03″W

Surface and Sub surface general operations area.
Surface to Bottom

19

Note: All of SOG Area is bounded by the shoreline where the area comes in contact with land


Diagram 14

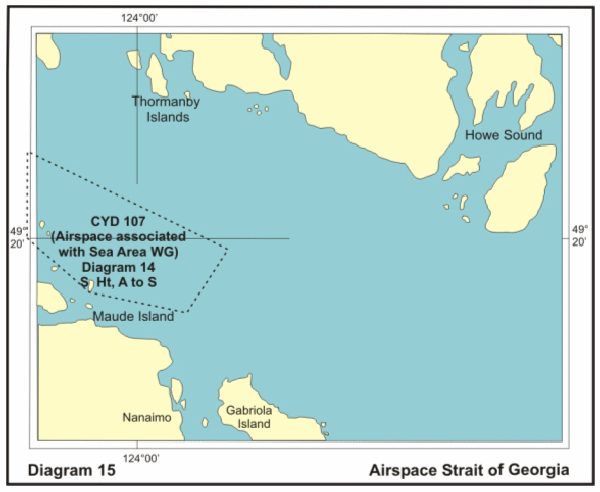

Diagram 15

Diagram 16


Diagram hazardous area


Canadian Forces Maritime Experimental and Test Ranges (CFMETR) - Nanoose Bay, BC

The Canadian Forces Maritime Experimental and Test Ranges tests ship and aircraft systems and torpedoes launched by surface vessels, submarines, or aircraft. No explosives are used; however, a hazard exists due to the possibility of the torpedo homing on vessels and then the vessel being struck by the torpedo on its way to the surface.
Testing is usually carried out during daylight hours Monday to Saturday. During testing, area "WG" is "Active". Any vessel within the area will be required to clear or stop on demand from the "Winchelsea Island Control" or any of the range vessels or range helicopter. The positions of these coordinates are clearly marked on the diagram above.
A transit area 1,000 yards north of Winchelsea Island and 1,000 yards east of South Ballenas Island is recommended to enable mariners to transit safely around the active area. It also facilitates unimpeded access to marina facilities in Schooner Cove and Nanoose Bay. The active range area is clearly depicted on CHS charts 3512, 3456 and 3459 by means of pecked lines.
Additional information on active range hours or for safe transit through the area may be obtained from:

a.Winchelsea Island Control at 1-888-221-1011 (next day's activity only);

b.CFMETR Range Officer at 250-468-5002 (long range planning);
c.Winchelsea Island Control VHF CH 10 or 16 (for safe transit area information when approaching Area "WG"). or
d.CMB VHF 21B or Weather 3 (listen only, for active times).

e.Navigational Warning.  Prince Rupert MCTS Centre at 250-627-3070.
NAVWARN.MCTSPrinceRupert@innav.gc.ca

f.Victoria MCTS Centre at 250-363-6333.

Area "WG" constitutes a "Defence Establishment" as defined in the National Defence Act to which the Defence Controlled Access Area Regulations apply. Vessels which do not comply with direction from either Winchelsea control or Range Patrol Vessels may be charged for trespassing.

Range vessels exhibit a flashing red light in addition to the prescribed lights and shapes. These vessels may operate outside of scheduled hours and should not be approached within 3,000 yards because they may be in a three-point moor with mooring lines extending to buoys 1,500 yards away. Additionally, lighted and unlighted mooring buoys are randomly located within the area. Mariners are advised to use caution when transiting this area during non-active range periods to avoid mooring buoys and lines.

Diagram 17

Diagram 18

Diagram 19

Esquimalt Harbour Approaches Areas

Sea Area

Airspace

Location

Coordinates

Employment

BANKS 1


Charts
3461
3440

48°24’28” N 123° 18’30” W (INTERSECTION OF LAND)
48°16’00” N 123°18’30” W
48°16’00” N 123°35’00” W
48°18’38” N 123°35’00” W (INTERSECTION OF LAND)
THE COASTLINE BACK TO ORIGIN

Sub surface operations area.
Surface to Bottom.

BANKS 2


Charts
3461
3440

48°27’00” N 123°17’22” W (INTERSECTION OF LAND)
48°27’00” N 123°09’18” W (INTERNATIONAL BORDER)
48°25’22” N 123°06’54.5” W (INTERNATIONAL BORDER)
48°25’00” N 123°00’00” W
48°14’30” N 123°00’00” W
48°14’30” N 123°18’30” W
48°24’28” N 123°18’30” W (INTERSECTION OF LAND)

Sub surface operations area.
Surface to Bottom.

BANKS 3


Charts
3461
3440

48°14’30” N 123°18’30” W
48°14’30” N 123°00’00” W
48°25’00” N 123°00’00” W
48°25’00” N 122°50’00” W
48°08’04” N 122°50’00” W (INTERSECTION OF LAND)

Sub surface operations area.
Surface to Bottom.

WA

To
10,000 feet
CYD 102

Chart
3461

48°20’36” N 123°31’34” W
48°23’15” N 123°28’36” W
48°25’50” N 123°26’45” W
48°24’25” N 123°23’15” W
48°15’21” N 123°23’15” W
48°13’36” N 123°31’48” W
48°20’00” N 123°34’30” W

General surface and air operations area.
Firing Exercise (Pyrotechnics)
(PYROEX)

WB

To
10,000 feet
CYD 102

Chart
3461

48°24’25” N 123°23’15” W
48°23’47” N 123°18’12” W
48°24’45” N 123°16’00” W
48°18’30” N 123°13’28” W
48°17’03” N 123°14’48” W
48°15’21” N 123°23’15” W

General surface and air operations area.
Firing Exercise (Pyrotechnics)
(PYROEX)

WK

To
10,000 feet
CYD 102

Chart
3461


General surface and air operations area.
Inactive

WL

To
10,000 feet
CYD 102

Chart
3461


General surface and air operations area.
Inactive

WQ

To
3,000 feet
CYD 103

Chart
3641

Bentinck Island demolition Range
A circle with 1 mile radius centered on
48°18’42” N 123°32’36” W

Demolition exercise
(DEMOEX)

Note:All of JDF Strait Area is bounded by the shoreline where the area comes in contact
 with land



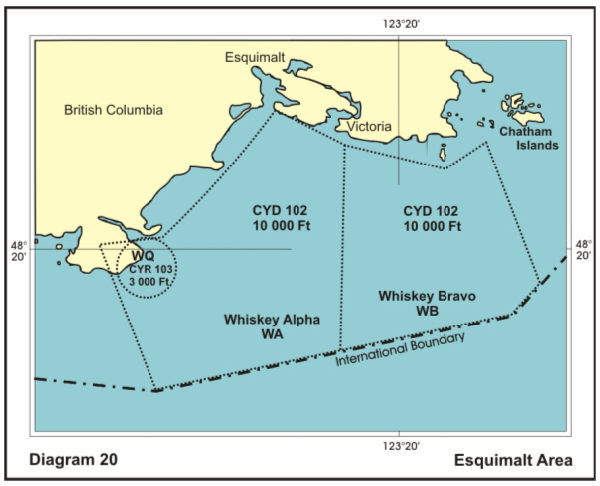

Diagram 20

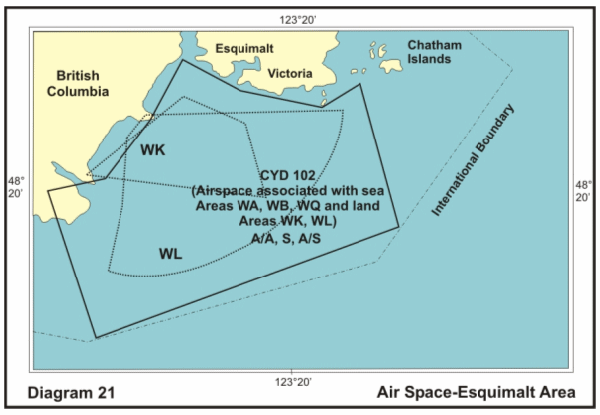

Diagram 21

Strait of Juan de Fuca (Area SJDF)


Sea Area

Airspace

Location

Coordinates

Employment

Diagram

Juan De
Fuca Strait
(SJ 1)


Chart
3606

48°27’14” N 124°35’00” W
48°29’36” N 124°43’38” W
48°22’30” N 125°00’00” W
48°22’30” N 124°35’00” W

Sub surface operations area.
Surface to Bottom.


Juan De
Fuca Strait
(SJ 2)


Chart
3606

NORTHERN BOUNDARY ALONG A LINE FOLLOWING THE US/CANADIAN
INTERNATIONAL BOUNDARY
WESTERN BOUNDARY OF 124°35’00” W
EASTERN BOUNDARY OF 124°17’35” W
COAST OF THE STATE OF WASHINGTON TO THE SOUTH

Sub surface operations area.
Surface to Bottom.


Juan De
Fuca Strait
(SJ 3)


Chart
3606

NORTHERN BOUNDARY ALONG A LINE FOLLOWING THE US/CANADIAN
INTERNATIONAL BOUNDARY
WESTERN BOUNDARY OF 124°17’35” W
EASTERN BOUNDARY OF 123°50’00” W
COAST OF THE STATE OF WASHINGTON TO THE SOUTH

Sub surface operations area.
Surface to Bottom.


Juan De
Fuca Strait
(SJ 4)


Chart
3606

48°06’48” N 123°18’30” W (INTERSECTION OF LAND)
48°16’00” N 123°18’30” W
48°16’00” N 123°50’00” W
48°09’20” N 123°50’00” W (INTERSECTION OF LAND)
THE COASTLINE BACK TO ORIGIN

Sub surface operations area.
Surface to Bottom.


Juan De
Fuca Strait
(SJ 5)


Chart
3606

COAST OF VANCOUVER ISLAND TO THE NORTH
WESTERN BOUNDARY OF 124°35’00” W
EASTERN BOUNDARY OF 124°17’35” W
SOUTHERN BOUNDARY ALONG A LINE FOLLOWING THE US/CANADIAN
INTERNATIONAL BOUNDARY

Sub surface operations area.
Surface to Bottom.


Juan De
Fuca Strait
(SJ 6)


Chart
3606

COAST OF VANCOUVER ISLAND TO THE NORTH
WESTERN BOUNDARY OF 124°17’35” W
EASTERN BOUNDARY OF 123°35’00” W
SOUTHERN BOUNDARY ALONG A LINE FOLLOWING THE US/CANADIAN
INTERNATIONAL BOUNDARY

Sub surface operations area.
Surface to Bottom.


Juan De
Fuca Strait
(SJ 7)


Chart
3606

COAST OF VANCOUVER ISLAND TO THE NORTH
WESTERN BOUNDARY OF 125°00’ 00” W
EASTERN BOUNDARY OF 124°35’ 00” W
SOUTHERN BOUNDARY ALONG A LINE CONNECTING THE FOLLOWING POINTS:
48°27’14” N 124°35’00” W,
48°29’36” N 124°43’38” W,
48°22’30” N 125°00’00” W

Sub surface operations area.

Surface to Bottom.


WH

To
Unlimited
CYD 109

Chart
3606

48°22’00” N 123°55’05” W
48°16’51” N 123°55’05” W
48°17’54” N 124°00’43” W
48°22’29” N 124°17’35” W
48°28’18” N 124°17’35” W

Firing Exercise (Surface) (FIREX)


Note: All of JDF Area is bounded by the shoreline where the area comes in contact with land.



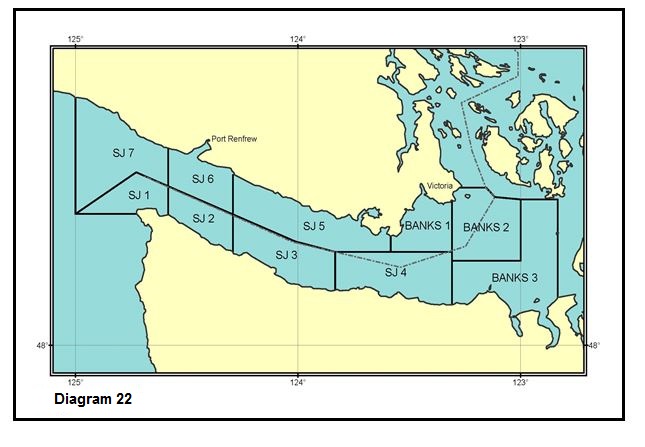

Diagram 22

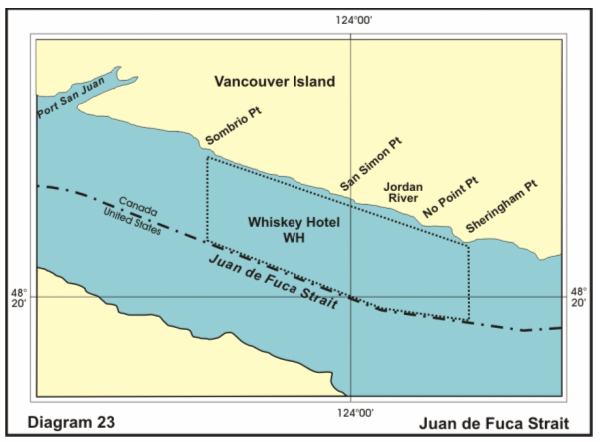

Diagram 23


Queen Charlotte Island (QCI) Areas

Sea Area

Airspace

Location

Coordinates

Employment

Diagram

DIXON


Chart
3002

54°25′00″N 134°00′00″W
54°25′00″N 130°00′00″W
54°00′00″N 130°00′00″W
54°00′00″N 132°30′00″W
53°30′00″N 132°30′00″W
53°30′00″N 134°00′00″W

Sub surface operations area.

24

HECATE


Chart
3002

54°00′00″N 130°00′00″W
54°00′00″N 132°30′00″W
53°30′00″N 132°30′00″W
52°00′00″N 131°00′00″W
51°30′00″N 130°00′00″W
51°30′00″N 127°20′00″W

Sub surface operations area.

24

MORESBY


Chart
3002

52°00′00″N 132°30′00″W
52°00′00″N 131°00′00″W
51°30′00″N 130°00′00″W
51°30′00″N 129°20′00″W
50°15′00″N 129°20′00″W
51°00′00″N 130°00′00″W

Sub surface operations area.

24

GRAHAM


Chart
3002

53°30′00″N 134°00′00″W
53°30′00″N 132°30′00″W
52°00′00″N 131°00′00″W
52°00′00″N 132°30′00″W

Sub surface operations area.

24

Note:All Queen Charlotte Island (QCI) Areas are bounded by the shoreline where any area comes in
 contact with land

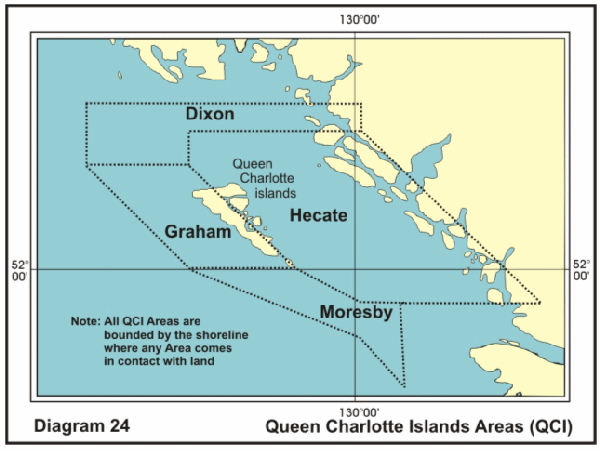

Diagram 24

Report a problem on this page
Please select all that apply:

Privacy statement

Thank you for your help!

You will not receive a reply. For enquiries, please contact us.

Date modified:
