| VOL. 37, MONTHLY EDITION NO 03 March 30, 2012 Publication Number 40063779 |
|||
Published Monthly by the
|
|||
|
CONTENTS |
|||
Page |
|||
| Section 1 |
Safety and General Information | 1 - 4 |
|
| Section 2 |
Chart Corrections | 5 - 14 |
|
| Section 3 |
Corrections to Radio Aids to Marine Navigation | NIL |
|
| Section 4 |
Sailing Directions and Small Craft Guide Corrections | 15 - 20 |
|
| Section 5 |
List of Lights, Buoys and Fog signals Corrections | 21 - 26 |
|
Maritime Services Directorate Aids to Navigation |
|||
Fisheries and Oceans Canada - Official publication of the Canadian Coast Guard |
|||
 |
|||
EXPLANATORY NOTES |
Geographical positions refer directly to the graduations of the largest scale Canadian Hydrographic chart unless otherwise indicated. |
Bearings refer to the true compass and are measured clockwise from 000° (North) clockwise to 359°; those relating to lights are from seaward. |
Visibility of lights is that in clear weather. |
Depths - The units used for soundings (metres, fathoms or feet) are stated in the title of each chart. |
Elevations are normally given above Higher High Water, Large Tides unless otherwise indicated. |
Distances may be calculated as follows: |
1 nautical mile = 1 852 metres (6,076.1 feet) 1 statute mile = 1 609.3 metres (5,280 feet) 1 metre = 3.28 feet |
Temporary & Preliminary Notices are indicated by a (T) or a (P) before the chart action and in the section 1. Please note that Nautical charts are not amended by the Canadian Hydrographic Service for Temporary (T) and Preliminary (P) Notices. It is recommended that mariners chart these corrections in pencil. Listing of charts affected by Temporary and Preliminary Notices are revised and promulgated quarterly in Section 1 of the Monthly Edition . |
Please note that, in addition to the temporary and preliminary changes normally advertised as (T) and (P) Notices, there are a few permanent changes to navigational aids that have been advertised as Preliminary Notices to Mariners while charts are being updated for new editions. |
Marine Information Report & Suggestion Sheet - Mariners are requested to notify the responsible authorities when new or suspected dangers to navigation are discovered, changes observed in aids to navigation or corrections to publications are seen to be necessary. Such communications can be made using the Marine Information Report & Suggestion Sheet inserted on the last page of each monthly edition of Notices to Mariners. |
Canadian Hydrographic Service – Information Published in Section 2 Notices to Mariners - Mariners are advised that only the most critical changes that directly affect safety to navigation are issued in Chart Corrections - Section 2. This limitation is required to ensure that charts remain as clear and easy to read as possible. As a result, mariners may see minor discrepancies of a non-critical nature between information in official publications. For example, a small change in the nominal range or height of a light may not result in the production of a chart correction, in Notices to Mariners, but may result in a List of Light, Buoys and Fog Signals correction. |
| In case of discrepancy between information provided on CHS charts related to aids to navigation, and the List of Light publication, the latter shall be deemed as containing the most up to date information |
Canadian Nautical Charts & Publications - A source list of Canadian Nautical Charts & Publications is published in Notice No. 14 of the Notices to Mariners Annual Edition April 2011. The source supply and the prices effective at the time of printing are listed. For current chart edition dates refer to the following web site: http://www.chs-shc.gc.ca/charts-cartes/paper-papier/index-eng.asp |
NOTE: Cette publication est aussi disponible en français. |
CHART CORRECTIONS - SECTION 2 |
|
Corrections to nautical charts will be listed in numeric order by chart number. Each chart correction listed applies only to that particular chart. Related charts, if any, will have their own specific correction listed separately. Users should also refer to CHS Chart 1 Symbols, Abbreviations Terms for additional information pertaining to the correction of charts. The illustration below describes the elements that will comprise a typical Section 2 chart correction. |
ADVISORY |
|
NOTICES TO SHIPPING (WRITTEN AND BROADCAST) |
|
The Canadian Coast Guard is implementing a number of changes to the aids to navigation system in Canada . |
|
These changes are advertised as Notices to Shipping (Broadcast and Written) by the Canadian Coast Guard and are followed up with Notices to Mariners, then charts are updated by hand correction, reprints or new editions. |
|
Mariners are advised that all relevant Written Notices to Shipping should be kept until superseded by Notices to Mariners or through revised charts issued by the Canadian Hydrographic Service. |
|
Written Notices to Shipping are published weekly and are available from local Canadian Coast Guard Offices. |
|
The Canadian Hydrographic Service is reviewing the impact of these changes with the Canadian Coast Guard and together we are preparing an action plan on the issuing of chart revisions. |
|
For further information contact your local Regional Notices to Shipping (Notships) issuing authorities. |
|
|
|
MONTHLY EDITION OF NOTICES TO MARINERS |
WEB ACCESS |
We are offering a feature where subscribers to our on-line service are able to receive the complete electronic monthly edition of our Notices to Mariners. We are encouraging our clients to visit the http://www.notmar.gc.ca/subscribe/ web site to subscribe for this service. Users wishing to receive information updates for their charts can do so by setting up a "User Profile" on the following web page http://www.notmar.gc.ca/search/mycharts-eng.php?czoxOToibnRtPXN0ZXBfb25lJmxhbmc9ZSI7 This feature permits users to register the nautical charts they currently have in their possession. Registrants are then automatically notified by e-mail when a Notice to Mariners is published concerning these charts. |
INDEX |
|
CANADIAN HYDROGRAPHIC SERVICE - ANNOUNCEMENT REGARDING CANADIAN HYDROGRAPHIC SERVICE CHART PATCHES |
1 |
CANADIAN HYDROGRAPHIC SERVICE - CUMULATIVE CHART CORRECTIONS |
1 |
CANADIAN HYDROGRAPHIC SERVICE - CURRENT CHART EDITION DATES |
1 |
CANADIAN HYDROGRAPHIC SERVICE - PRINT ON DEMAND CHARTS - CARE AND USE |
1 |
CANADIAN HYDROGRAPHIC SERVICE - TRANSPORT CANADA NAVIGATION SAFETY - ECDIS |
1 |
*304 CANADIAN COAST GUARD PUBLICATION - NEW EDITION OF THE CANADIAN AIDS TO NAVIGATION SYSTEM - 2011 |
3 |
*302 CANADIAN HYDROGRAPHIC SERVICE - ELECTRONIC NAVIGATIONAL CHARTS |
2 |
*301 CANADIAN HYDROGRAPHIC SERVICE - NAUTICAL CHARTS |
2 |
*308 CAPE TORMENTINE À/TO WEST POINT - BUOYS DISCONTINUED |
4 |
*303 MARINE COMMUNICATIONS AND TRAFFIC SERVICES (MCTS) - POLL FAX SERVICE DISCONTINUED |
2 |
*309(P) PLANS, BAIE DES CHALEURS/CHALEUR BAY (CÔTE NORD/NORTH SHORE) - LIGHT BUOY TO BE DISCONTINUED |
4 |
*306(P) TRYON SHOALS TO/À CAPE EGMONT - LIGHT AND BELL BUOY TO BE DISCONTINUED |
3 |
*307 TRYON SHOALS TO/À CAPE EGMONT - LIGHT BUOY DISCONTINUED |
3 |
*305(P) TRYON SHOALS TO/À CAPE EGMONT - LIGHT TO BE DISCONTINUED |
3 |
NUMERICAL INDEX OF CANADIAN CHARTS AFFECTED |
|||||
Chart No. |
Page |
Chart No. |
Page |
Chart No. |
Page |
1202 |
5 |
4905 |
13 |
||
1203 |
5,6 |
4906 |
13 |
||
1226 |
6,7 |
4921 |
4 |
||
1233 |
7 |
4950 |
13 |
||
1234 |
7 |
4956 |
13 |
||
1236 |
7,8 |
4980 |
2 |
||
1320 |
8 |
5335 |
13 |
||
1350 |
8,9 |
6414 |
2 |
||
1361 |
9 |
6433 |
2 |
||
1509 |
9 |
6436 |
2 |
||
1510 |
9,10 |
6437 |
2 |
||
3492 |
2 |
6441 |
2 |
||
4015 |
10 |
7310 |
2 |
||
4016 |
10 |
8011 |
13 |
||
4023 |
10 |
8012 |
14 |
||
L/C 4049 |
11 |
8013 |
14 |
||
4406 |
3,4 |
||||
4472 |
11 |
||||
4530 |
11 |
||||
4538 |
11 |
||||
4583 |
11 |
||||
4626 |
12 |
||||
4827 |
12 |
||||
4857 |
12 |
||||
4858 |
12 |
||||
4862 |
12 |
||||
SECTION 1 – Edition 3/2012
SAFETY AND GENERAL INFORMATION
CANADIAN HYDROGRAPHIC SERVICE - ANNOUNCEMENT REGARDING CANADIAN HYDROGRAPHIC SERVICE CHART PATCHES
Colour Web Patches are free to the mariner, and given the quality of many printers, should reproduce well. They will be available in real time all around the world.
CHS welcomes your feedback on this service at chsinfo@dfo-mpo.gc.ca
CANADIAN HYDROGRAPHIC SERVICE - CUMULATIVE CHART CORRECTIONS
The cumulative Notices to Mariners corrections for charts can now be accessed at
www.notmar.gc.ca/search/notmar-eng.php
CANADIAN HYDROGRAPHIC SERVICE - CURRENT CHART EDITION DATES
CHART EDITIONS |
The three terms described below are used to indicate the publication status of Canadian charts. |
NEW CHART - "NEWCHT" |
The first publication of a Canadian chart embracing an area not previously charted to the scale shown, or embracing an area different from any existing Canadian chart. |
NEW EDITION - "NEWEDT" |
A new issue of an existing chart containing amendments essential to navigation in addition to those issued in Notices to Mariners and making existing editions obsolete. |
REPRINTS |
A new issue of the current edition of a chart incorporating no amendments of navigational significance other than those previously promulgated in Notices to Mariners. It may also contain amendments from other sources provided they are not essential to navigation. Previous printings of the current edition remain in force. |
The current chart edition dates can be accessed at www.chs-shc.gc.ca/charts-cartes/paper-papier/index-eng.asp
CANADIAN HYDROGRAPHIC SERVICE - PRINT ON DEMAND CHARTS - CARE AND USE
Background By providing nautical charts to the public, the goal of the Canadian Hydrographic Service (CHS) is to provide services for safe navigation in a fiscally responsible manner. As a result, CHS continues to expand its portfolio of nautical paper charts that are printed using Print On Demand (POD) technology. These charts are easily recognized by their whiter paper and the coloured logo of the Canadian Hydrographic Service. This new technology enables CHS to print charts in a more efficient manner while enhancing chart content through being able to quickly add new and important information. POD technology provides customers with up-to-date charts without the historical hand-drawn corrections or glued-on patches. Additionally, this technology eliminates out-of-stock situations which arise with the traditional printing and warehousing methods. In the event of a national emergency, CHS can respond to the appropriate authorities with best available information very quickly. Care of Your POD Chart CHS encourages its customers to handle the POD charts more carefully than the traditional lithographic charts. When plotting information on POD charts, use HB pencils and apply limited pressure. Testing has suggested that an Indian gum eraser is more effective than alternatives when used on the product. This eraser is also suitable for charts printed using lithographic processes. |
CANADIAN HYDROGRAPHIC SERVICE - TRANSPORT CANADA NAVIGATION SAFETY - ECDIS
Mariners are advised that ECDIS may not display some isolated shoal depths when operating in "base or standard display" mode. Route planning and monitoring alarms for these shoal depths may not always be activated. To ensure safe navigation and to confirm that a planned route is clear of such dangers, mariners should visually inspect the planned route and any deviations from it using ECDIS configured to display "all data". The automated voyage planning check function should not be solely relied upon. |
*301 CANADIAN HYDROGRAPHIC SERVICE - NAUTICAL CHARTS
CHARTS |
MAIN TITLE |
SCALE |
PUBLISHED |
CAT# |
PRICE |
New Editions |
All temporary and preliminary notices affecting the previous versions of the following chart(s) (is / are) now cancelled. For any outstanding notices please consult section 2 of this edition. |
||||
3492 |
Roberts Bank |
1:20000 |
09-DEC-2011 |
2 |
$20.00 |
4980 |
Blanc Sablon |
1:15000 |
21-OCT-2011 |
1 |
$11.50 |
6414 |
Wrigley River to/à Three Finger Creek Kilometre 580 / Kilomètre 650 |
1:50000 |
07-OCT-2011 |
4 |
$12.00 |
6433 |
West Channel, Aklavik to/à Shallow Bay |
1:50000 |
07-OCT-2011 |
4 |
$12.00 |
6436 |
Napoiak Channel, including / y compris Schooner and/et Taylor Channels Kilometre / Kilomètre 1590 - 1650 |
1:50000 |
07-OCT-2011 |
4 |
$12.00 |
6437 |
Peel Channel including/y compris Husky Channel and /et Phillips Channel |
1:50000 |
07-OCT-2011 |
4 |
$12.00 |
6441 |
West Channel including/y compris Anderton Channel, Ministicoog Channel and/et Moose Channel to/à Shoalwater Bay |
1:50000 |
07-OCT-2011 |
4 |
$12.00 |
7310 |
Jones Sound |
1:300000 |
16-DEC-2011 |
4 |
$20.00 |
*302 CANADIAN HYDROGRAPHIC SERVICE - ELECTRONIC NAVIGATIONAL CHARTS
RELEASED PRODUCTS |
|
S-57 ENC NUMBER |
CHART TITLE |
CA570435 |
Entrance to/entrée à Mathieson Channel |
CA570436 |
Borrowman Bay |
CA570437 |
Weeteeam Bay |
CA570438 |
Clifford Bay |
CA570439 |
Higgins Passage |
CA570445 |
Chapple Inlet |
CA470446 |
Barnard Harbour |
CA570447 |
Kent Inlet |
CA570448 |
Inlets in/Entrée en Laredo Channel |
CA570449 |
Gillen Harbour |
CA570450 |
Klemtu Passage to/à Tolmie Channel |
CA573411 |
Red Rock |
CA373291 |
Nipigon Bay and Approaches |
CA579046 |
Cap-aux-Meules |
CA579096 |
Blanc Sablon |
*303 MARINE COMMUNICATIONS AND TRAFFIC SERVICES (MCTS) - POLL FAX SERVICE DISCONTINUED
Reference: Notice 805(P)/2010 is now cancelled. The Marine Facsimile Package, also known as the POLLFAX Service offered by Prescott MCTS Centre has been permanently discontinued. You can find most of the information currently available on the POLLFAX at the following internet sites: www.weatheroffice.gc.ca/ www.ice-glaces.ec.gc.ca |
*304 CANADIAN COAST GUARD PUBLICATION - NEW EDITION OF THE CANADIAN AIDS TO NAVIGATION SYSTEM - 2011
The 2011 edition of the Canadian Aids to Navigation System publication is now available. Amendments to this publication are advertised in the Section 1 of the monthly edition of Notices to Mariners (www.notmar.gc.ca). It can be downloaded free of charge on the Canadian Coast Guard website: www.ccg-gcc.gc.ca/Aids_To_Navigation_System_2011 |
*305(P) TRYON SHOALS TO/À CAPE EGMONT - LIGHT TO BE DISCONTINUED
Reference: Chart 4406 The Canadian Coast Guard proposes to permanently discontinue the following aid to navigation: Coldspring Head (LL 941) (45°57'44.8"N 63°51'54.5"W) Comments on this action are solicited from mariners and other interested parties. Comments should be directed to the following within three months from the date of this notice: Sandra Inglis, A/Superintendent , Aids to Navigation, Canadian Coast Guard, P.O. Box 1000, Dartmouth, NS, B2Y 3Z8, Email: Sandra.inglis@dfo-mpo.gc.ca Telephone: (902) 426-3151 Any objections raised must state the facts on which they are based and should include supporting information on safety, commerce and public benefit. (G2012-014) |
*306(P) TRYON SHOALS TO/À CAPE EGMONT - LIGHT AND BELL BUOY TO BE DISCONTINUED
Reference: Chart 4406 The Canadian Coast Guard proposes to permanently discontinue the following aid to navigation: Pugwash Harbour light and bell buoy UK (LL 925.12) (45°57'30.2"N 63°38'13.6"W) Comments on this action are solicited from mariners and other interested parties. Comments should be directed to the following within three months from the date of this notice: Sandra Inglis, A/Superintendent , Aids to Navigation, Canadian Coast Guard, P.O. Box 1000, Dartmouth, NS, B2Y 3Z8, Email: Sandra.inglis@dfo-mpo.gc.ca Telephone: (902) 426-3151 Any objections raised must state the facts on which they are based and should include supporting information on safety, commerce and public benefit. (G2012-017) |
*307 TRYON SHOALS TO/À CAPE EGMONT - LIGHT BUOY DISCONTINUED
Reference: Notice 1011(P)/2011 is now cancelled. (Chart 4406) (G2012-015) |
*308 CAPE TORMENTINE À/TO WEST POINT - BUOYS DISCONTINUED
Reference: Notice 1012(P)/2011 is now cancelled. (Chart 4406) (G2012-016) |
*309(P) Plans, Baie des Chaleurs/Chaleur Bay (côte nord/North Shore) - light buoy to be discontinued
Reference: Chart 4921 The Canadian Coast Guard proposes to permanently discontinue the following aid to navigation, effective June 1st 2012 Grande-Rivière lighted fairway buoy GDRIV (LL 1400) (48º23'20.1"N 64º29'31.7"W) Comments on this action are solicited from mariners and other interested parties. Comments should be directed to the following within two months from the date of this notice. Regional Superintendent, Aids to Navigation, Canadian Coast Guard, 101 Blvd. Champlain, Québec, QC. G1K 7Y7 Email: aidesnavquebec@dfo-mpo.gc.ca Telephone: (418)-648-3574. Any objections raised must state the facts on which they are based and should include supporting information on safety, commerce and public benefit. (Q2012 -013) |
SECTION 2 – Edition 3/2012
CHART CORRECTIONS
CHART CORRECTIONS
1202 - Cap à l'Est à St-Fulgence - Continuation A - Sheet 1 - New Edition - 22-JUL-2011 - NAD 1983
23-MAR-2012 |
LNM/D. 25-NOV-2011 |
|
Amend |
Fl 6s17m to read Fl 6s17m5M against light (See Chart No. 1, P16) |
48°22'33.2"N 070°42'20.4"W |
(Q2011182) LL(1798) DFO(6408518-01) |
||
This notice might affect Electronic Navigational Chart: CA479094 |
||
Amend |
Fl Y 6s11m to read Fl Y 6s11m5M against light (See Chart No. 1, P16) |
48°25'08.2"N 070°49'52.8"W |
(Q2011183) LL(1799.5) DFO(6408519-01) |
||
This notice might affect Electronic Navigational Chart: CA479094 |
||
1202 - Cap Éternité à Cap à l'Est - Sheet 1 - New Edition - 22-JUL-2011 - NAD 1983
23-MAR-2012 |
LNM/D. 25-NOV-2011 |
|
Amend |
Fl 6s15m to read Fl 6s15m5M against light (See Chart No. 1, P16) |
48°22'28.2"N 070°32'06.7"W |
(Q2011181) LL(1795) DFO(6408517-01) |
||
This notice might affect Electronic Navigational Chart: CA479078 |
||
Amend |
Fl 6s17m to read Fl 6s17m5M against light (See Chart No. 1, P16) |
48°22'33.2"N 070°42'20.4"W |
(Q2011182) LL(1798) DFO(6408518-01) |
||
1203 - Tadoussac à/to Cap Éternité - Sheet 1 - New Edition - 17-JUN-2011 - NAD 1983
16-MAR-2012 |
LNM/D. 25-NOV-2011 |
|
Amend |
Fl 6s18m to read Fl 6s18m5M against light (See Chart No. 1, P16) |
48°08'52.7"N 069°48'13.1"W |
(Q2011174) LL(1785) DFO(6408508-01) |
||
This notice might affect Electronic Navigational Chart: CA479053 |
||
Amend |
Fl 6s7m to read Fl 6s7m5M against light (See Chart No. 1, P16) |
48°09'05.6"N 069°51'18.8"W |
(Q2011175) LL(1786) DFO(6408511-01) |
||
This notice might affect Electronic Navigational Chart: CA479053 |
||
Amend |
Fl 6s13m to read Fl 6s13m5M against light (See Chart No. 1, P16) |
48°14'01.7"N 069°53'41.8"W |
(Q2011176) LL(1787) DFO(6408512-01) |
||
This notice might affect Electronic Navigational Chart: CA479053 |
||
Amend |
Fl G 6s13m to read Fl G 6s13m5M against light (See Chart No. 1, P16) |
48°13'01.2"N 069°53'41.4"W |
(Q2011177) LL(1788) DFO(6408513-01) |
||
This notice might affect Electronic Navigational Chart: CA479053 |
||
Amend |
Fl 6s40m to read Fl 6s40m5M against light (See Chart No. 1, P16) |
48°15'03.3"N 070°01'08.6"W |
(Q2011178) LL(1790) DFO(6408514-01) |
||
1203 - Continuation A - Sheet 1 - New Edition - 17-JUN-2011 - NAD 1983
16-MAR-2012 |
LNM/D. 25-NOV-2011 |
|
Amend |
Fl 6s40m to read Fl 6s40m5M against light (See Chart No. 1, P16) |
48°15'03.3"N 070°01'08.6"W |
(Q2011178) LL(1790) DFO(6408514-01) |
||
This notice might affect Electronic Navigational Chart: CA479087 |
||
Amend |
Fl 6s15m to read Fl 6s15m5M against light (See Chart No. 1, P16) |
48°15'37.7"N 070°06'52.4"W |
(Q2011179) LL(1791) DFO(6408515-01) |
||
This notice might affect Electronic Navigational Chart: CA479087 |
||
Amend |
Fl 6s15m to read Fl 6s15m5M against light (See Chart No. 1, P16) |
48°16'19.5"N 070°12'08.1"W |
(Q2011180) LL(1793) DFO(6408516-01) |
||
This notice might affect Electronic Navigational Chart: CA479087 |
||
1226 - Quai Public/Public Wharf - Sheet 1 - New Edition - 19-FEB-2010 - NAD 1983
30-MAR-2012 |
LNM/D. 04-NOV-2011 |
|
Delete |
depth of 9 metres 1 decimetre (See Chart No. 1, I10) |
49°13'53.7"N 068°07'51.1"W |
DFO(6408548-01) |
||
Add |
depth of 8 metres 8 decimetres (See Chart No. 1, I10) |
49°13'53.6"N 068°07'51.3"W |
DFO(6408548-02) |
||
Delete |
depth of 7 metres 7 decimetres (See Chart No. 1, I10) |
49°14'00.9"N 068°07'56.4"W |
DFO(6408548-03) |
||
Add |
depth of 7 metres 4 decimetres (See Chart No. 1, I10) |
49°14'00.8"N 068°07'56.6"W |
DFO(6408548-04) |
||
Add |
depth of 8 metres 5 decimetres (See Chart No. 1, I10) |
49°14'02.8"N 068°07'50.9"W |
DFO(6408548-05) |
||
Add |
depth of 9 metres 6 decimetres (See Chart No. 1, I10) |
49°14'05.0"N 068°07'52.3"W |
DFO(6408548-06) |
||
Delete |
depth of 8 metres 0 decimetres (See Chart No. 1, I10) |
49°14'05.6"N 068°07'54.3"W |
DFO(6408548-07) |
||
Add |
depth of 6 metres 7 decimetres (See Chart No. 1, I10) |
49°14'05.6"N 068°07'54.5"W |
DFO(6408548-08) |
||
Delete |
depth of 6 metres 3 decimetres (See Chart No. 1, I10) |
49°14'14.8"N 068°07'51.6"W |
DFO(6408548-09) |
||
Add |
depth of 6 metres 7 decimetres (See Chart No. 1, I10) |
49°14'15.2"N 068°07'49.3"W |
DFO(6408548-10) |
||
Delete |
depth of 3 metres 9 decimetres (See Chart No. 1, I10) |
49°14'15.5"N 068°07'55.0"W |
DFO(6408548-11) |
||
Add |
depth of 3 metres 3 decimetres (See Chart No. 1, I10) |
49°14'15.1"N 068°07'55.0"W |
DFO(6408548-12) |
||
1233 - Cap aux Oies à/to Sault-au-Cochon - New Edition - 30-OCT-2009 - NAD 1983
30-MAR-2012 |
LNM/D. 20-JAN-2012 |
|
Amend |
Iso Y 2s18m7M to read Iso G 2s13m7M against light (See Chart No. 1, P16) |
47°26'54.1"N 070°21'52.7"W |
(Q2012021) LL(1849.5) DFO(6408544-04) |
||
This notice might affect Electronic Navigational Chart: CA479021 |
||
1233 - Saint-Joseph-de-la-Rive - New Edition - 30-OCT-2009 - NAD 1983
30-MAR-2012 |
LNM/D. 20-JAN-2012 |
||
Delete |
light Iso Y 2s18m (See Chart No. 1, P1) |
47°26'54.1"N 070°21'53.0"W |
|
(Q2012021) LL(1849.5) DFO(6408544-01) |
|||
This notice might affect Electronic Navigational Chart: CA579022 |
|||
Add |
light Iso G 2s13m (See Chart No. 1, P1) |
47°26'54.1"N 070°21'52.7"W |
|
(Q2012021) LL(1849.5) DFO(6408544-02) |
|||
This notice might affect Electronic Navigational Chart: CA579022 |
|||
Reposition |
radar reflector (See Chart No. 1, S4) |
from 47°26'54.1"N 070°21'53.0"W |
|
to 47°26'54.1"N 070°21'52.7"W |
|||
(Q2012021) LL(1849.5) DFO(6408544-03) |
|||
This notice might affect Electronic Navigational Chart: CA579022 |
|||
1234 - Cap de la Tête au Chien au/to Cap aux Oies - New Edition - 04-NOV-2011 - NAD 1983
30-MAR-2012 |
||
Amend |
Iso Y 2s18m7M to read Iso G 2s13m7M against light (See Chart No. 1, P16) |
47°26'54.1"N 070°21'52.7"W |
(Q2012021) LL(1849.5) DFO(6408544-04) |
||
This notice might affect Electronic Navigational Chart: CA379029 |
||
1236 - Matane - New Edition - 23-JUL-2004 - NAD 1983
16-MAR-2012 |
LNM/D. 02-SEP-2011 |
|
Add |
depth of 5 metres 6 decimetres (See Chart No. 1, I10) |
48°50'52.2"N 067°34'41.3"W |
DFO(6408532-01) |
||
This notice might affect Electronic Navigational Chart: CA579040 |
||
Delete |
depth of 6 metres 4 decimetres (See Chart No. 1, I10) |
48°50'45.8"N 067°34'46.8"W |
DFO(6408532-02) |
||
This notice might affect Electronic Navigational Chart: CA579040 |
||
Add |
depth of 5 metres 9 decimetres (See Chart No. 1, I10) |
48°50'45.9"N 067°34'46.6"W |
DFO(6408532-03) |
||
This notice might affect Electronic Navigational Chart: CA579040 |
||
Delete |
depth of 8 metres 1 decimetre (See Chart No. 1, I10) |
48°50'40.8"N 067°34'34.5"W |
DFO(6408532-04) |
||
This notice might affect Electronic Navigational Chart: CA579040 |
||
Add |
depth of 7 metres 6 decimetres (See Chart No. 1, I10) |
48°50'41.2"N 067°34'33.8"W |
DFO(6408532-05) |
||
This notice might affect Electronic Navigational Chart: CA579040 |
||
Add |
depth of 7 metres 7 decimetres (See Chart No. 1, I10) |
48°50'31.6"N 067°34'37.8"W |
DFO(6408532-06) |
||
This notice might affect Electronic Navigational Chart: CA579040 |
||
Amend |
10,0m (2008) to read 9,6m (2011) (See Chart No. 1, I22) |
48°50'30.9"N 067°34'41.0"W |
DFO(6408532-07) |
||
This notice might affect Electronic Navigational Chart: CA579040 |
||
1320 - Île du Bic au/to Cap de la Tête au Chien - New Chart - 26-AUG-2011 - NAD 1983
16-MAR-2012 |
LNM/D. 25-NOV-2011 |
|
Amend |
Fl 6s18m8M to read Fl 6s18m5M against light (See Chart No. 1, P16) |
48°08'52.7"N 069°48'13.1"W |
(Q2011174) LL(1785) DFO(6408508-01) |
||
This notice might affect Electronic Navigational Chart: CA379232 |
||
1350 - Île aux Cerfs à/to Otterburn-Park - Sheet 4 - New Edition - 15-DEC-2006 - NAD 1983
16-MAR-2012 |
LNM/D. 17-FEB-2012 |
|
Replace |
crib in ruins, Ru which covers and uncovers with submerged crib in ruins, Ru. |
45°32'50.0"N 073°12'42.1"W |
DFO(6408537-01) |
||
Replace |
crib in ruins, Ru which covers and uncovers with submerged crib in ruins, Ru. |
45°32'48.1"N 073°12'42.5"W |
DFO(6408537-02) |
||
1350 - Pont Beloeil - Sheet 4 - New Edition - 15-DEC-2006 - NAD 1983
16-MAR-2012 |
LNM/D. 17-FEB-2012 |
|
Add |
depth of 2 metres 4 decimetres (See Chart No. 1, I10) |
45°32'52.7"N 073°12'42.2"W |
DFO(6408492-01) |
||
Replace |
crib in ruins, Ru which covers and uncovers with submerged crib in ruins, Ru with depth of 0 metres 5 decimetres. |
45°32'50.0"N 073°12'42.1"W |
DFO(6408537-01) |
||
Replace |
crib in ruins, Ru which covers and uncovers with submerged crib in ruins, Ru with depth of 1 metre 9 decimetres. |
45°32'48.1"N 073°12'42.5"W |
DFO(6408537-02) |
||
1361 - Lac Memphrémagog A/B - Sheet 1 - New Edition - 09-OCT-2009 - Unknown
16-MAR-2012 |
LNM/D. 09-SEP-2011 |
|
Amend |
Q R to read Q R 2M against light (See Chart No. 1, P16) |
45°15'58.5"N 072°10'06.5"W |
(Q2011185) LL(2389) DFO(6408520-01) |
||
1509 - Rapides du Cheval Blanc - Sheet 1 - New Edition - 30-DEC-2005 - NAD 1983
30-MAR-2012 |
LNM/D. 02-MAR-2012 |
|
Replace |
white and orange information pillar buoy, marked CHEVAL by yellow cautionary pillar buoy, marked CHEVAL (See Chart No. 1, Qp, Qm) |
45°31'03.7"N 073°49'32.6"W |
(Q2012023) DFO(6408549-01) |
||
1509 - Rapides Lalemant - Sheet 1 - New Edition - 30-DEC-2005 - NAD 1983
30-MAR-2012 |
LNM/D. 02-MAR-2012 |
|
Replace |
white and orange information pillar buoy, marked ROU by yellow cautionary pillar buoy, marked ROU (See Chart No. 1, Qp, Qm) |
45°31'23.6"N 073°53'02.3"W |
(Q2012024) DFO(6408550-01) |
||
1509 - Pont-Viau à/to Île Bourdon E-F - Sheet 2 - New Edition - 30-DEC-2005 - NAD 1983
02-MAR-2012 |
LNM/D. 10-FEB-2012 |
|
Replace |
starboard hand daybeacon with private light Fl R (Priv) (See Chart No. 1, P1) |
45°42'10.8"N 073°30'32.2"W |
(Q2011164) DFO(6408499-01) |
||
Replace |
starboard hand daybeacon with private light Fl R (Priv) (See Chart No. 1, P1) |
45°42'11.1"N 073°30'31.3"W |
(Q2011165) DFO(6408500-01) |
||
Replace |
port hand daybeacon with private light Fl G (Priv) (See Chart No. 1, P1) |
45°42'08.8"N 073°30'32.3"W |
(Q2011166) DFO(6408502-01) |
||
Replace |
port hand daybeacon with private light Fl G (Priv) (See Chart No. 1, P1) |
45°42'08.8"N 073°30'31.3"W |
(Q2011167) DFO(6408503-01) |
||
1510 - Lac Saint-Louis à/to Carillon - Compartment B-C - Sheet 1 - New Edition - 04-JUN-2010 - NAD 1983
16-MAR-2012 |
LNM/D. 02-MAR-2012 |
||
Reposition |
private black and yellow North cardinal pillar buoy, Priv (See Chart No. 1, Q130.3) |
from 45°30'30.0"N 074°11'07.0"W |
|
to 45°30'35.4"N 074°11'06.1"W |
|||
(Q2011168) DFO(6408504-01) |
|||
Reposition |
private yellow and black South cardinal pillar buoy, Priv (See Chart No. 1, Q130.3) |
from 45°30'20.0"N 074°11'15.0"W |
|
to 45°30'15.7"N 074°11'10.8"W |
|||
(Q2011169) DFO(6408505-01) |
|||
02-MAR-2012 |
LNM/D. 17-FEB-2012 |
||
Reposition |
private yellow, black and yellow West cardinal pillar buoy, Priv (See Chart No. 1, Q130.3) |
from 45°30'27.0"N 074°11'40.0"W |
|
to 45°30'38.0"N 074°11'50.0"W |
|||
(Q2011170) DFO(6408506-01) |
|||
16-MAR-2012 |
LNM/D. 02-MAR-2012 |
||
Reposition |
private black, yellow and black East cardinal pillar buoy, Priv (See Chart No. 1, Q130.3) |
from 45°30'20.0"N 074°10'52.0"W |
|
to 45°30'10.8"N 074°10'42.0"W |
|||
(Q2011171) DFO(6408507-01) |
|||
4015 - Sydney to/à Saint-Pierre - New Edition - 28-MAR-2003 - NAD 1983
30-MAR-2012 |
LNM/D. 24-FEB-2012 |
|
Delete |
depth of 12 fathoms (See Chart No. 1, I10) |
47°14'00.0"N 055°58'45.0"W |
DFO(6305953-01) |
||
Add |
depth of 7 fathoms, 4 feet (See Chart No. 1, I10) |
47°13'54.7"N 055°58'34.5"W |
DFO(6305953-02) |
||
4016 - Saint-Pierre to/à St. John's - New Edition - 06-JUN-2003 - NAD 1983
30-MAR-2012 |
LNM/D. 03-FEB-2012 |
|
Delete |
depth of 12 fathoms (See Chart No. 1, I10) |
47°13'54.0"N 055°58'45.0"W |
DFO(6305953-01) |
||
This notice might affect Electronic Navigational Chart: CA276274 |
||
Add |
depth of 7 fathoms, 4 feet (See Chart No. 1, I10) |
47°13'54.7"N 055°58'34.5"W |
DFO(6305953-02) |
||
This notice might affect Electronic Navigational Chart: CA276274 |
||
4023 - Northumberland Strait / Détroit de Northumberland - New Edition - 27-DEC-2002 - NAD 1983
02-MAR-2012 |
LNM/D. 10-FEB-2012 |
|
Amend |
FlY 5s 42ft 13M to read Fl 5s 41ft 11M against light (See Chart No. 1, P1) |
46°14'04.3"N 064°15'49.6"W |
(G2012011) LL(1101) DFO(6305930-01) |
||
This notice might affect Electronic Navigational Chart: CA276286 |
||
23-MAR-2012 |
LNM/D. 02-MAR-2012 |
|
Delete |
red and white fairway lighted pillar buoy Mo(A) (See Chart No. 1, Qh) |
46°11'17.0"N 064°03'23.0"W |
(G2012015) LL(1097.8) DFO(6305950-01) |
||
This notice might affect Electronic Navigational Chart: CA276286 |
||
L/C4049 - Grand Bank, Northern Portion Grand Banc, Partie Nord to/à Flemish Pass/Passe Flamande - New Edition - 19-MAY-1995 - NAD 1983
16-MAR-2012 |
LNM/D. 09-SEP-2011 |
|
Add |
private yellow lighted spherical buoy Fl(5) Y 20s, Priv (See Chart No 1 Q22) |
46°43'46.0"N 048°49'13.0"W |
DFO(6305946-01) |
||
This notice might affect Electronic Navigational Chart: CA276101 |
||
4406 - Tryon Shoals to/à Cape Egmont - New Edition - 27-FEB-1998 - NAD 1983
23-MAR-2012 |
LNM/D. 10-FEB-2012 |
||
Delete |
red and white fairway lighted pillar buoy Mo(A), marked XE (See Chart No. 1, Qh) |
46°11'18.2"N 064°03'26.7"W |
|
(G2012015) LL(1097.8) DFO(6305950-01) |
|||
Delete |
wharf (See Chart No. 1, F14) |
joining 46°09'57.5"N 064°03'59.6"W |
|
46°09'57.5"N 064°04'06.4"W |
|||
and 46°09'53.0"N 064°04'06.4"W |
|||
DFO(6305951-01) |
|||
4472 - Baie des Homards à/to Île de la Grande Passe - New Edition - 14-AUG-1981 - NAD 1927
23-MAR-2012 |
LNM/D. 24-NOV-2006 |
|
Replace |
black and white fairway lighted can buoy (Mo A), marked (St-Augustin) with red and white fairway lighted pillar buoy Mo (A), marked STAUG (See Chart No. 1, Qh, P10.9) |
51°10'32.5"N 058°18'06.0"W |
(Q2012014) LL(1539.15) DFO(6408538-01) |
||
4530 - Hamilton Sound, Eastern Portion / Partie est - New Edition - 15-MAR-2002 - NAD 1983
16-MAR-2012 |
LNM/D. 28-OCT-2011 |
||
Reposition |
red starboard hand lighted spar buoy FlR, marked DX6 (See Chart No. 1, Qf) |
from 49°33'39.5"N 054°16'49.5"W |
|
to 49°33'39.8"N 054°16'38.6"W |
|||
LL(372.62) DFO(6305947-01) |
|||
4538 - Canada Bay including / y compris Chimney Bay - New Edition - 11-JUL-2003 - Unknown
09-MAR-2012 |
LNM/D. 10-FEB-2012 |
|
Add |
light FlG (See Chart No. 1, P1) |
119.2°, 1.64 nautical miles from the South end of Fane Island |
True geographic position 50-51-46.38N, 56-07-54.54W, see Horizontal Datum note. |
||
(N2012002) LL(252) DFO(6305928-01) |
||
4583 - St. Julien Island to/à Hooping Harbour including/y compris Canada Bay - New Edition - 31-MAY-2002 - Unknown
09-MAR-2012 |
LNM/D. 10-FEB-2012 |
|
Add |
light FlG (See Chart No. 1, P1) |
50°51'54.0"N 056°08'00.0"W |
True geographic position (50-51-46.38N, 56-07-54.54W) differs from charted position see Horizontal Datum note. |
||
(N2012002) LL(252) DFO(6305928-01) |
||
4626 - Saint-Pierre and/et Miquelon (France) - New Edition - 24-JAN-2003 - NAD 1983
30-MAR-2012 |
LNM/D. 03-FEB-2012 |
|
Delete |
depth of 12 fathoms (See Chart No. 1, I10) |
47°13'54.0"N 055°58'35.0"W |
DFO(6305953-01) |
||
This notice might affect Electronic Navigational Chart: CA376166 |
||
Add |
depth of 7 fathoms, 4 feet (See Chart No. 1, I10) |
47°13'54.7"N 055°58'34.5"W |
DFO(6305953-02) |
||
This notice might affect Electronic Navigational Chart: CA376166 |
||
4827 - Hare Bay to/à Fortune Head - New Chart - 13-AUG-2004 - NAD 1983
30-MAR-2012 |
LNM/D. 10-FEB-2012 |
|
Delete |
depth of 21 metres, 9 decimetres (See Chart No. 1, I10) |
47°13'54.9"N 055°58'36.8"W |
DFO(6305953-01) |
||
Add |
depth of 14 metres, 1 decimetre (See Chart No. 1, I10) |
47°13'54.7"N 055°58'34.5"W |
DFO(6305953-02) |
||
4857 - Indian Bay to/à Wadham Islands - New Chart - 29-OCT-1999 - NAD 1983
02-MAR-2012 |
LNM/D. 13-JAN-2012 |
|
Delete |
light Fl 3s 12m (See Chart No. 1, P1) |
49°09'41.1"N 053°24'56.0"W |
(N2012003) LL(407) DFO(6305940-01) |
||
This notice might affect Electronic Navigational Chart: CA376371 |
||
4857 - Lumsden Harbour - New Chart - 29-OCT-1999 - NAD 1983
09-MAR-2012 |
LNM/D. 02-MAR-2012 |
|
Affix |
patch |
49°18'00.0"N 053°35'00.0"W |
Download Patch - http://www.chs-shc.gc.ca/patches/4857_PA_309298.pdf |
||
DFO(6305931-01) |
||
This notice might affect Electronic Navigational Chart: CA576372 |
||
4858 - Greenspond Harbour to/à Pound Cove - New Chart - 25-DEC-1998 - NAD 1983
02-MAR-2012 |
LNM/D. 13-MAY-2011 |
|
Delete |
light Fl 3s 12m (See Chart No. 1, P1) |
49°09'41.1"N 053°24'56.0"W |
(N2012003) LL(407) DFO(6305940-01) |
||
4862 - Carmanville to/à Bacalhoa Island and/et Fogo - New Chart - 26-DEC-2003 - NAD 1983
16-MAR-2012 |
LNM/D. 10-DEC-2010 |
||
Reposition |
red starboard hand lighted spar buoy FlR, marked DX6 (See Chart No. 1, Qf) |
from 49°33'39.5"N 054°16'49.5"W |
|
to 49°33'39.8"N 054°16'38.6"W |
|||
LL(372.62) DFO(6305947-01) |
|||
This notice might affect Electronic Navigational Chart: CA476813 |
|||
4905 - Cape Tormentine à/to West Point - New Edition - 29-DEC-2000 - NAD 1983
02-MAR-2012 |
LNM/D. 10-FEB-2012 |
||
Amend |
FlY 5s 13m 13M to read Fl 5s 13m 11M against light (See Chart No. 1, P1) |
46°14'04.3"N 064°15'49.6"W |
|
(G2012011) LL(1101) DFO(6305930-01) |
|||
This notice might affect Electronic Navigational Chart: CA376076 |
|||
23-MAR-2012 |
LNM/D. 02-MAR-2012 |
||
Delete |
red and white fairway lighted pillar buoy Mo(A), marked XE (See Chart No. 1, Qh) |
46°11'18.2"N 064°03'26.7"W |
|
(G2012015) LL(1097.8) DFO(6305950-01) |
|||
This notice might affect Electronic Navigational Chart: CA376076 |
|||
Delete |
wharf (See Chart No. 1, F14) |
joining 46°09'56.1"N 064°03'57.2"W |
|
46°09'58.0"N 064°03'59.5"W |
|||
46°09'58.0"N 064°04'05.1"W |
|||
and 46°09'54.0"N 064°04'05.1"W |
|||
DFO(6305951-01) |
|||
This notice might affect Electronic Navigational Chart: CA376076 |
|||
4906 - West Point à/to Baie de Tracadie - New Chart - 18-MAR-1988 - NAD 1983
02-MAR-2012 |
LNM/D. 10-JUN-2011 |
|
Amend |
Fl R to read FlG against light (See Chart No. 1, P1) |
47°27'55.6"N 064°52'57.1"W |
(G2012013) LL(1239.8) DFO(6305932-01) |
||
This notice might affect Electronic Navigational Chart: CA376062 |
||
4950 - Îles de la Madeleine - New Edition - 12-JAN-2007 - NAD 1983
30-MAR-2012 |
LNM/D. 30-DEC-2011 |
|
Add |
pilot boarding station, Mines Seleine (See Chart No. 1, T1.2) |
47°30'00.0"N 061°35'00.0"W |
DFO(6408536-01) |
||
This notice might affect Electronic Navigational Chart: CA379216 |
||
4956 - Cap-aux-Meules - New Edition - 02-SEP-2011 - NAD 1983
02-MAR-2012 |
||
Affix |
patch |
47°22'32.0"N 061°51'09.0"W |
Download Patch - http://www.chs-shc.gc.ca/patches/4956_PA_309424.pdf |
||
DFO(6408527-01) |
||
This notice might affect Electronic Navigational Chart: CA579046 |
||
5335 - Continuation A - Sheet 1 - New Chart - 15-MAR-1985 - Unknown
30-MAR-2012 |
LNM/D. 11-MAR-2005 |
|
Replace |
sounding of 13 metres, with depth of 9.9 metres (See Chart No. 1, I10) |
58°40'31.8"N 065°58'55.0"W |
DFO(6603765-01) |
||
8011 - Grand Bank, Northern Portion/ Grand Banc, Partie Nord - New Edition - 30-AUG-2002 - NAD 1983
16-MAR-2012 |
LNM/D. 31-DEC-2010 |
|
Add |
private yellow lighted spherical buoy Fl(5) Y 20s, Priv (See Chart No 1 Q22) |
46°43'46.0"N 048°49'13.0"W |
DFO(6305946-01) |
||
8012 - Flemish Pass/Passe Flamande - New Edition - 11-OCT-2002 - NAD 1983
16-MAR-2012 |
LNM/D. 17-FEB-2012 |
|
Add |
private yellow lighted spherical buoy Fl(5) Y 20s, Priv (See Chart No 1 Q22) |
46°43'46.0"N 048°49'13.0"W |
DFO(6305946-01) |
||
8013 - Flemish Cap/Bonnet Flamand - New Edition - 06-FEB-2004 - NAD 1983
30-MAR-2012 |
LNM/D. 17-FEB-2012 |
|
On certain copies. |
||
Amend |
41062 metres to read 1062 metres against wellhead (See Chart No 1 L21.2) |
48°18'21.7"N 046°15'52.7"W |
DFO(6305952-01) |
||
This notice might affect Electronic Navigational Chart: CA276477 |
||
SECTION 4 – Edition 3/2012
SAILING DIRECTIONS AND SMALL CRAFT GUIDE CORRECTIONS
SAILING DIRECTIONS AND SMALL CRAFT GUIDE CORRECTIONS
ATL 101 - Newfoundland - Northeast and East Coasts, First Edition, 1997 -
Chapter 2 - Paragraph 84, last line
Add: A light (336.28) is shown from a mast on the outer end of the wharf.
(N2012-00.1)
Chapter 2 - After paragraph 90
Insert: 90.1 West cardinal light buoy DBB (335.9), marking a shoal, is located about 0.35 mile SSE of the ferry wharf.
(N2012-00.2)
Chapter 3 - Paragraph 391
Delete: "extending 135 feet (41 m) ... 60 feet (18 m) long."
Replace by: extends 128 feet (39 m) to a depth of 8 feet (2.4 m) alongside a 49 foot (15 m) long outer end.
(N2012-00.3)
Chapter 3 - Paragraph 425
Delete: "in disrepair in 2008 ... 25-foot (7.6 m) wide outer end."
Replace by: with depths of 2 to 5 feet (0.7 to 1.6 m) alongside its south face 95 feet (29 m) long.
(N2012-00.4)
ATL 102 - Newfoundland - East and South Coasts, Second Edition, 2008 -
Chapter 2 - Paragraph 110, after "crib in ruins"
Insert: which dries
(N2012-00.5)
Chapter 2 - Paragraph 110, last line
Add: The narrow channel is marked by port and starboard hand light buoys CC1, CC3 (487.3, 487.29) and CC2, CC4 (487.4, 487.28).
(N2012-00.6)
Chapter 5 - Paragraph 39.1 (Re: Correction promulgated in Monthly Edition No. 11/2010).
Delete: "Inside the harbour it is laid ... to Sandy Cove."
Replace by: It is landed at Sandy Cove in Argentia Harbour.
(N2012-00.7)
Chapter 6 - Paragraph 246
Delete: "north end of the wharf."
Replace by: south end of the floating wharf.
(N2012-00.8)
ATL 103 - Newfoundland - Southwest Coast, Second Edition, 2010 -
Chapter 2 - Paragraph 150, last line
Add: Submarine cables enter Harbour Breton and are landed about 0.1 mile SE of the previously described submarine pipeline. The chart is best consulted for cable location information.
(N2012-00.9)
ATL 104 - Cape North to Cape Canso (including Bras d’Or Lake ), Second Edition, 2010 -
Chapter 1 - Paragraph 29
Delete: Briton
Replace by: Breton
(A2012-004.06)
Chapter 1 - Paragraph 30, after "At Little River, south of"
Delete: Briton
Replace by: Breton
(A2012-004.07)
Chapter 2 - Paragraph 59, after "east entrance point to the cove."
Delete: "The east face ... alongside."
Replace by: Though the wharf was in ruins in 2011, the east face offers fair shelter to small craft.
(A2012-004.08)
INDEX - After "Bridgeport Basin, C1/P82"
Delete: Briton Cove, C1/P29
Replace by: Breton Cove, C1/P29
(A2012-004.09)
ATL 105 - Cape Canso to Cape Sable (including Sable Island), First Edition, 2001 -
Chapter 1 - Paragraph 114, after "used by local fishermen."
Insert: At its head, an overhead cable traverses the harbour, with a clearance of 7.5 m.
(A2012-005.32)
Chapter 1 - Adjacent to paragraph 114, add caution pictograph.
(A2012-005.33)
Chapter 2 - Paragraph 34, after "a white circular tower"
Delete: 11.5
Replace by: 8.5
(A2012-005.34)
Chapter 2 - Paragraph 34, after "sounded from a horn near the light"
Delete: ; the horn points 144°
(A2012-005.35)
Chapter 4 - Paragraph 75, after "The lights in line bear"
Delete: 267°
Replace by: 268°
(A2012-005.36)
Chapter 5 - Paragraph 83, after "marked by south cardinal" (Re: Correction promulgated in Monthly Edition No. 1/2012)
Delete: light buoy KD (5383.03)
Replace by: buoy KD
(A2012-005.37)
ATL 106 - Gulf of Maine and Bay of Fundy, First Edition, 2001 -
Chapter 1 - Paragraph 44, after "is shown from a mast"
Insert: with a red and white triangular daymark,
(A2012-006.22)
Chapter 2 - Paragraph 22, after "A light (247) is shown from a"
Delete: mast
Replace by: skeleton tower with a green and white rectangular daymark
(A2012-006.23)
Chapter 3 - Paragraph 146, last line - after "starboard hand" (Re: Correction promulgated in Monthly Edition No. 1/2012)
Delete: light buoy SK2 (5075.2)
Replace by: buoy SK2
(A2012-006.24)
INDEX - After "Sail Rock, 51"
Insert: Saint Andrews, 66
(A2012-006.25)
ATL 108 - Gulf of St. Lawrence (Southwest Portion), First Edition, 2006 -
Chapter 1 - Paragraph 10
Delete: "A fog signal ... horn points 300°."
(A2012-008.06)
Chapter 1 - Paragraph 175
Delete: Starboard hand light and bell buoy JC2 (1041)
Replace by: Fairway light buoy JC (1040.05)
(A2012-008.07)
Chapter 1 - Paragraph 178
Delete: "Leading lights ... best channel."
Replace by: Fairway light buoy JD (1043.1) is moored about 0.5 mile north of the entrance to St. Peters Bay. Owing to changing conditions within the entrance, the channel buoys may be moved to indicate the best channel.
(A2012-008.08)
Chapter 1 - Adjacent to paragraph 178, delete the light pictograph.
(A2012-008.09)
Chapter 1 - Adjacent to paragraph 179, add a light pictograph.
(A2012-008.10)
Chapter 1 - Paragraph 180, after "retaining wall."
Delete: "Starboard hand ... of the light."
Replace by: Fairway light buoy JE (1046.81) is moored 0.8 mile NNE of the light.
(A2012-008.11)
Chapter 3 - Paragraph 193
Delete: Light buoys DJ7 and DJ12 (1027.41 and 1027.42) mark the channel
Replace by: The channel is buoyed
(A2012-008.12)
ATL 109 - Gulf of St. Lawrence (Northeast Portion), First Edition, 2006 -
Chapter 2 - Paragraph 60
Delete: "The T-shaped wharf ... close to the north."
Replace by: A seasonal light (1539.123) shown from a mast is at the southeast end of a peninsula (51°25'N, 57°49'W). There is an L shaped wharf, 155 feet (47 m) long and 20 feet (6 m) wide, as well as floating wharves for small craft. There is also a launching ramp and a wharf in ruins.
(Q2011-077.1)
Chapter 2 - Paragraph 172
Delete: "There is a launching ramp ... north of this wharf."
(Q2011-097.1)
ATL 110 - St. Lawrence River - Cap Whittle/Cap Gaspé to Les Escoumins and Anticosti Island, Second Edition, 2002 -
Chapter 2 - Paragraph 73
Delete: "Rocky shoals, ... 15 m offshore."
Replace by: Rocky shoals with depths of 0.2 to 1 m lie along the edge of the breakwater at a distance of 20 m.
(Q2011-051.1)
ATL 111 - St. Lawrence River - Île Verte to Québec and Fjord du Saguenay, Third Edition, 2007 -
Chapter 2 - In the vicinity of paragraph 127, Table 2.3 Port of Québec : Québec Port Authority Wharves and Facilities
Make the following change in the "Depth" column.
| Berth | Depth m |
| Battures de Beauport | |
| 52 | 13.5 |
Chapter 2 - In the vicinity of paragraph 134, Table 2.3 Port of Québec: Québec Port Authority Wharves and facilities
Make the following change in the "Remarks" column.
| Berth | Remarks |
| Estuaire de la rivière Saint-Charles | |
| 24 | Wharf in ruins: berthage prohibited. |
ATL 112 - St. Lawrence River - Cap-Rouge to Montréal and Rivière Richelieu, Third Edition, 2009 -
Chapter 2 - Paragraph 85
Delete: *38 m
Replace by: *37 m
(Q2012-010.1)

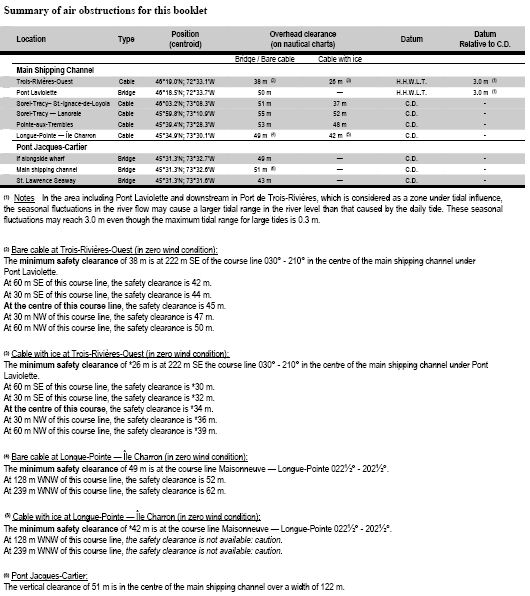

APPENDICES - Delete the Summary of air obstructions for this booklet Table (Re: Correction promulgated in Monthly Editions Nos. 1/2011 and 7/2011)
Replace by the new Summary of air obstructions for this booklet Table published in Section 4 of this Monthly Edition.
Summary of air obstructions - PDF format - http://www.notmar.gc.ca/eng/services/notmar/sec4_2012e.pdf or GIF format - http://www.notmar.gc.ca/eng/services/notmar/sec4_2012e.jpg
(Q2012-010.2)
CEN 302 - Lake Ontario, First Edition, 1996 -
Chapter 3 - Paragraph 129, after "by the Oshawa"
Delete: Harbour Commission
Replace by: Port Authority
(C2012-005.01)
CEN 306 - Georgian Bay, First Edition, 1998 -
Chapter 1 - Paragraph 11
Delete: Boating Restriction Regulations
Replace by: Vessel Operation Restriction Regulations
(C2012-004.01)
Chapter 1 - Paragraph 18, after "fluorescent-orange vertical stripe."
Delete: "The coloured diagram ... waters."
(C2012-004.02)
Chapter 1 - Delete paragraph 22
Replace by: 22 Georgian Bay has become a pleasure-craft paradise over the years. The few remaining cargo ports include Owen Sound, Midland, Parry Sound and Britt.
(C2012-004.03)
SECTION 5 – Edition 3/2012
LIST OF LIGHTS, BUOYS AND FOG SIGNALS CORRECTIONS
LIST OF LIGHTS, BUOYS AND FOG SIGNALS CORRECTIONS
NEWFOUNDLAND |
||||||||||
105.3 |
Fortune Harbour Wharf (Floating Dock) |
47 04 20.5 55 49 52.9 |
FI |
R |
4s |
3.2 |
2 |
Mast. 2.6 |
Year round. Chart 4832 Edn 03/12(N11-027) |
|
252 |
Roddickton Wharf |
Delete from list. Chart:4538 Edn 03/12(N12-002) |
||||||||
252 |
Roddickton Wharf |
Entrance to harbour. 50 51 46.4 56 07 54.5 |
Fl |
G |
4s |
3.7 |
3 |
Mast. 2.1 |
Seasonal. Chart:4538 Edn 03/12(N12-002) |
|
352.4 |
Jobs Island light buoy DLW2 |
49 17 54.2 55 00 22.4 |
Fl |
R |
4s |
..... |
..... |
Red spar, marked "DLW2". |
Year round. Chart:4865 Edn 03/12(N12-005) |
|
352.8 |
Mussel Bed Rocks light buoy DLW1 |
E. of Masons Cove. 49 18 55.9 54 58 21.7 |
Fl |
G |
4s |
..... |
..... |
Green spar, marked "DLW1". |
Year round. Chart:4865 Edn 03/12(N12-004) |
|
407 |
Stevenson's Islets |
Delete from list. Chart:4857 Edn 03/12(N12-003) |
||||||||
ATLANTIC |
||||||||||
280 H3814 |
Candlebox Island |
N. entrance, Schooner Passage. 43 39 44.6 66 02 43.3 |
F |
R |
..... |
14.1 |
10 |
White rectangular tower, red upper portion. 11.6 |
Year round. Horn - Blast 3 s; sil. 27 s. Horn points 343°. Chart:4244 Edn 03/12 (F12-002) |
|
283 H3806 |
Peases Island |
On S. point of one of the Tusket Islands. 43 37 42.6 66 01 34.9 |
Fl |
W |
6s |
16.0 |
9 |
White cylindrical tower, red upper portion. 11.5 |
Flash 0.5 s; eclipse 5.5 s. Visible from all points of approach from southward; also through Schooner and Ellenwood Passages. Operates at night only. Year round. Horn - Blast 3 s; sil. 3 s; blast 3 s; sil. 51 s. Chart:4244 Edn 03/12 (F12-005) |
|
295 H3800 |
Whitehead Island |
On S. point of island. 43 39 45.8 65 52 02.5 |
Fl |
W |
15s |
30.0 |
13 |
White rectangular tower, red upper portion. 11.9 |
Year round. Horn - Blast 3 s; sil. 27 s. Chart:4244 Edn 03/12 (F12-006) |
|
348 H3778 |
The Salvages |
SE. end of island. 43 28 08.1 65 22 44 |
LFl |
W |
12s |
15.6 |
10 |
White rectangular tower, red upper portion. 12.0 |
Flash 2 s; eclipse 10 s. Operates at night only. Year round. Horn - Blast 2 s; sil. 3 s; blast 2 s; sil. 3 s; blast 2 s; sil. 48 s. Chart:4241 Edn 03/12 (F12-007) |
|
349 H3774 |
Cape Negro Island |
On SE. end of island. 43 30 26.2 65 20 44.2 |
Fl(2) |
W |
15s |
28.3 |
..... |
White octagonal tower, red upper portion. 11.9 |
Visible from 187° through W., N. and E. to 106°30'. Operates at night only. Year round. Horn - Blast 6 s; sil. 54 s. Chart:4241 Edn 03/12 (F12-003) |
|
370 H3750 |
Lockeport |
On Gull Rock, entrance to harbour. 43 39 18.3 65 05 55.9 |
LFl |
W |
15s |
16.7 |
12 |
White rectangular tower, red upper portion. 12.1 |
Flash 4 s; eclipse 11 s. Operates at night only. Year round. Horn - Blast 3 s; sil. 27 s. Chart:4209 Edn 03/12 (F12-004) |
|
405 H3740 |
Western Head |
W. side of entrance to Liverpool Bay. 43 59 20.8 64 39 44.5 |
Fl |
W |
15s |
16.8 |
15 |
White octagonal tower, red upper portion. 13.8 |
Flash 0.5 s; eclipse 14.5 s. Visible from 180° through W. and N. to 062°. Year round. Horn - Blast 6 s; sil. 54 s. Horn points 104°. Chart:4240 Edn 03/12 (F12-001) |
|
845.1 |
Great Bras D'Or (St. Anns Bay) light buoy KP2 |
46 18 02.2 60 31 47.3 |
Fl |
R |
4s |
..... |
..... |
Red, marked "KP2". |
Seasonal. Chart:4277 Edn 03/12 |
|
845.3 |
Great Bras D'Or (St. Anns Bay) light buoy KP7 |
46 17 32 60 32 18.8 |
Fl |
G |
4s |
..... |
..... |
Green, marked "KP7". |
Seasonal. Chart:4277 Edn 03/12 |
|
845.5 |
Breton Cove light and bell buoy KN |
46 26 27.2 60 26 48.6 |
Mo(A) |
W |
6s |
..... |
..... |
Red and white vertical stripes, marked "KN". |
Seasonal. Chart:4367 Edn 03/12 |
|
845.7 H857.5 845.8 H857.51 |
Breton Cove range |
| | | | | | | | | | |
46 26 41.2 60 27 38.7 290°59' 80.2m from front. |
F F |
Y Y |
..... ..... |
7.2 10.7 |
16 16 |
Square skeleton tower, white trapezoidal daymark, red vertical stripe. |
Visible in line of range. Operates at night only. Seasonal. Visible in line of range. Operates at night only. Seasonal. Chart:4367 Edn 03/12 |
1050.2 |
Covehead Harbour light buoy JJ6 |
46 26 02 63 08 43.1 |
Q |
R |
1s |
..... |
..... |
Red spar, marked "JJ6". |
Seasonal. Chart:4425 Edn 03/12 (G10-161) |
|
1050.91 |
Covehead Harbour light buoy JJ10 |
46 25 50.8 63 08 47.1 |
Fl |
R |
4s |
..... |
..... |
Red, marked "JJ10". |
Seasonal. Chart:4425 Edn 03/12 (G10-162) |
|
1071.2 |
Darnley Bridge |
On center span of bridge. 46 32 02.8 63 40 17.7 |
F |
W |
..... |
3.5 |
6 |
On bridge. |
Operates at night only. Seasonal. Chart:4491 Edn 03/12 |
|
1097.8 |
Little Shemogue light buoy XE |
Delete from list. Chart:4406 Edn 03/12 (G12-015) |
||||||||
1101 |
Bas-Cap-Pelé Approach |
S. of breakwater, on shore. 46 14 04.3 64 15 49.6 |
Fl |
W |
5s |
12.6 |
11 |
Square skeleton tower, red and white rectangular daymark. 6.9 |
Flash 0.5 s; eclipse 4.5 s. Seasonal. Chart:4905 Edn 03/12 (G12-011) |
|
1239.8 |
Val Comeau Wharf |
On outer end of wharf. 47 27 55.6 64 52 57.1 |
Fl |
G |
4s |
5.8 |
5 |
Square skeleton tower. 5.2 |
Flash 1 s; eclipse 3 s. Operates at night only. Seasonal. Chart:4906 Edn 03/12 (G12-013) |
|
1491.1 |
Étang du Nord North Breakwater |
47 22 12.3 61 57 42.1 |
Fl |
G |
3s |
4.6 |
4 |
Mast. 2.1 |
Flash 1 s; eclipse 2 s. Operates at night only. Seasonal. Chart:4950 Edn 03/12 (Q12-028) |
|
1491.2 H913.5 |
Étang du Nord South Breakwater |
47 22 10.1 61 57 41.5 |
Fl |
R |
3s |
4.2 |
4 |
Mast. 2.1 |
Flash 1 s; eclipse 2 s. Operates at night only. Seasonal. Chart:4950 Edn 03/12 (Q12-029) |
|
1497 H914 1498 H914.1 |
Cap-aux-Meules, Wharf range |
| | | | | | | | | | |
47 22 36.8 61 51 13.2 330°13' 133.2m from front. |
Iso Iso |
G G |
1s 1s |
6.8 12.0 |
13 13 |
Red square skeleton tower, orange trapezoidal daymark, black vertical stripe. 4.9 Red square skeleton tower, orange trapezoidal daymark, black vertical stripe. 9.5 |
Visible in line of range. Operates at night only. Year round. Visible in line of range. Operates at night only. Year round. Chart:4956 Edn 03/12 |
1539.15 |
Fairway light buoy STAUG |
Saint-Augustin. 51 10 32.5 58 18 06 |
Mo(A) |
W |
6s |
..... |
..... |
Red and white vertical stripes, marked "STAUG". |
Seasonal. Chart:4472 Edn 03/12 (Q12-014) |
|
1785 H2122 |
Cap de la Boule |
On S. side of point. 48 08 52.7 69 48 13.1 |
Fl |
W |
6s |
18.0 |
5 |
Square skeleton tower. 6.6 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1203 Edn 03/12 (Q11-174) |
|
1786 H2124 |
Anse de Sable |
W. of cove. 48 09 05.6 69 51 18.8 |
Fl |
W |
6s |
6.8 |
5 |
Square skeleton tower. 6.5 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1203 Edn 03/12 (Q11-175) |
|
1787 H2130 |
Anse à Pierrot |
NW. of cove. 48 14 01.7 69 53 41.8 |
Fl |
W |
6s |
13.1 |
5 |
Square skeleton tower. 9.5 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1203 Edn 03/12 (Q11-176) |
|
1788 H2126 |
Pointe aux Crêpes |
On point. 48 13 01.2 69 53 41.4 |
Fl |
G |
6s |
12.9 |
5 |
Square skeleton tower. 8.0 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1203 Edn 03/12 (Q11-177) |
|
1790 H2131 |
Île Saint-Louis |
On N. side of island. 48 15 03.3 70 01 08.6 |
Fl |
W |
6s |
39.6 |
5 |
Square skeleton tower. 9.5 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1203 Edn 03/12 (Q11-178) |
|
1791 H2133 |
Pointe Claveau |
On point. 48 15 37.7 70 06 52.4 |
Fl |
W |
6s |
15.3 |
5 |
Square skeleton tower. 9.5 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1203 Edn 03/12 (Q11-179) |
|
1793 H2136 |
Anse de Tabatière |
NW. of Pointe au Boeuf. 48 16 19.5 70 12 08.1 |
Fl |
W |
6s |
15.0 |
5 |
Square skeleton tower. 4.9 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1203 Edn 03/12 (Q11-180) |
|
1795 H2140 |
Cap Rouge |
48 22 28.2 70 32 06.7 |
Fl |
W |
6s |
14.8 |
5 |
Square skeleton tower. 8.0 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1202 Edn 03/12 (Q11-181) |
|
1798 H2142 |
Cap à l'Est |
On S. extremity of cape. 48 22 33.2 70 42 20.4 |
Fl |
W |
6s |
17.0 |
5 |
White octagonal tower, red upper portion. 8.1 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1202 Edn 03/12 (Q11-182) |
|
1799.5 H2142.8 |
Pointe aux Pins |
W. side of the point. 48 25 08.2 70 49 52.8 |
Fl |
Y |
6s |
10.9 |
5 |
Square skeleton tower, orange rectangular daymark. 6.4 |
Flash 1 s; eclipse 5 s. Operates at night only. Year round. Chart:1202 Edn 03/12 (Q11-183) |
|
1849.5 H2204 |
Cap Saint-Joseph |
On the portal landing. 47 26 54.1 70 21 52.7 |
Iso |
G |
2s |
13.4 |
7 |
Structure. 11.2 |
Radar reflector. Year round. Chart:1233 Edn 03/12 (Q12-021) |
|
1852 H2218 1852.1 1853 H2218.1 1853.1 |
Cap-aux-Corbeaux range |
| | | | | | | | | | | | | | | | | | | | | |
E. of wharf. 47 26 06.7 70 25 40.6 024°13' 374.6m from front. |
F F F F |
W W W W |
..... ..... ..... ..... |
32.9 32 52.4 52.0 |
20 8 20 8 |
Trapezoidal skeleton tower, orange trapezoidal daymark, black vertical stripe. 32.2 Trapezoidal skeketon tower. 31.4 Square skeleton tower, orange trapezoidal daymark, black vertical stripe. 13.0 Square skeleton tower. 12.8 |
Visible in line of range. Emergency light. Year round. Emergency mode. Visible from 252°30' and 004°30' through E. Visible in line of range. Emergency light. Year round. Emergency mode. Visible from 256° and 004°30' through E. Chart:1233 Edn 03/12 |
2055 |
Light buoy C4 |
N. side of channel. 46 26 29.1 72 17 02.3 |
Fl |
R |
4s |
..... |
..... |
Red, marked "C4". |
Winter spar. Year round. Chart:1313 Edn 03/12 |
|
2056 |
Poulier Turcotte light buoy C7 |
S. side of channel. 46 26 16.3 72 18 10.3 |
Fl |
G |
4s |
..... |
..... |
Green, marked "C7". |
Winter spar. Year round. Chart:1313 Edn 03/12 |
|
2057 |
Champlain light buoy C13 |
S. side of channel. 46 26 08.4 72 20 00.7 |
Fl |
G |
4s |
..... |
..... |
Green, marked "C13". |
Winter spar. Year round. Chart:1313 Edn 03/12 |
|
2057.5 |
Poulier Carpentier light buoy C14 |
46 26 16.3 72 20 01.9 |
Fl |
R |
4s |
..... |
..... |
Red, marked "C14". |
Winter spar. Year round. Chart:1313 Edn 03/12 |
|
2058 |
Poulier Dubord light buoy C15 |
Mian channel. 46 26 02.6 72 20 32.9 |
Q |
G |
1s |
..... |
..... |
Green, marked "C15". |
Winter spar. Year round. Chart:1313 Edn 03/12 |
|
2153.3 H2411 |
Maskinongé Curve |
46 09 24.4 72 56 28.6 |
Iso |
Y |
2s |
13.9 |
5 |
Orange cylindrical tower, white rectangular daymark, red and white horizontal bands. 5.5 |
Visible 360°. Radar reflector. Operates at night only. Year round. Chart:1312 Edn 03/12 (Q11-184) |
|
2389 |
Old Witch Shoal |
45 15 58.2 72 10 05.3 |
Q |
R |
1s |
..... |
2 |
Red mast. 2.1 |
Operates at night only. Seasonal. Chart:1361 Edn 03/12 (Q11-185) |
|
INLAND WATERS |
||||||||||
544.6 |
St. Catharines Outer |
43 14 39.6 79 12 27.5 |
Iso |
R |
2s |
8.6 |
5 |
White cylindrical tower, red upper portion. 4.8 |
Seasonal. Chart:2042 Edn 03/12(B12-001) |
|
